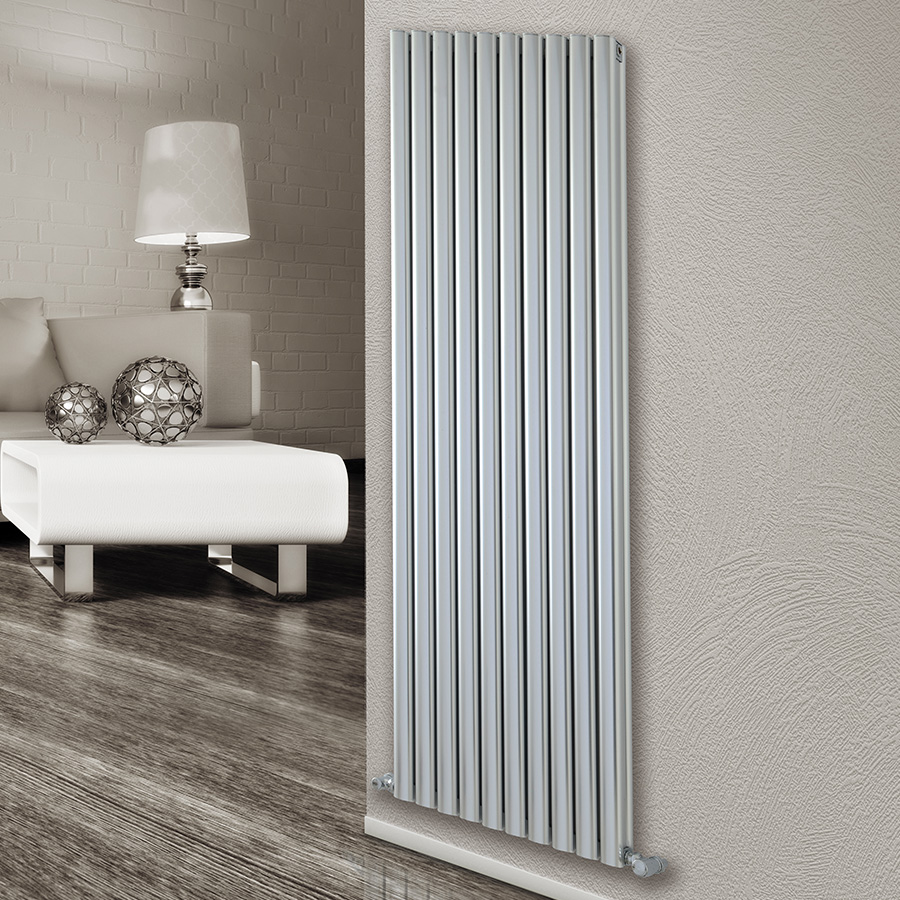

MODEL SHOWN: VSG1810MA (Matt Anodised)

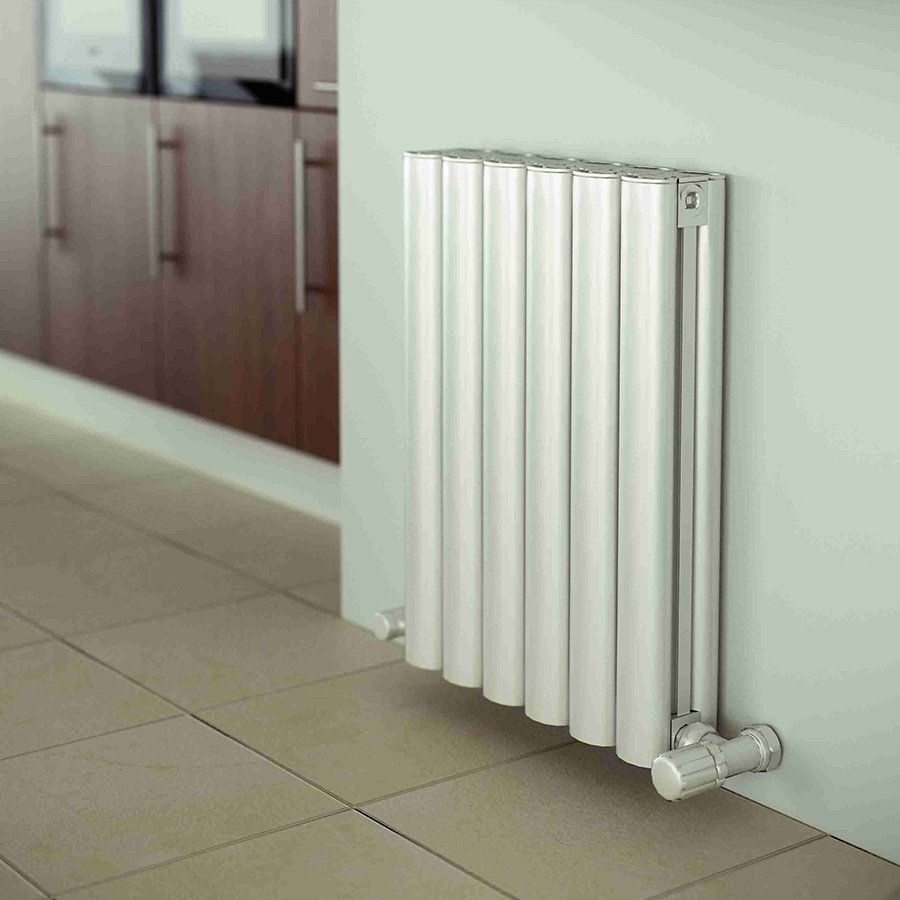

MODEL SHOWN: VSG611MA (Matt Anodised)

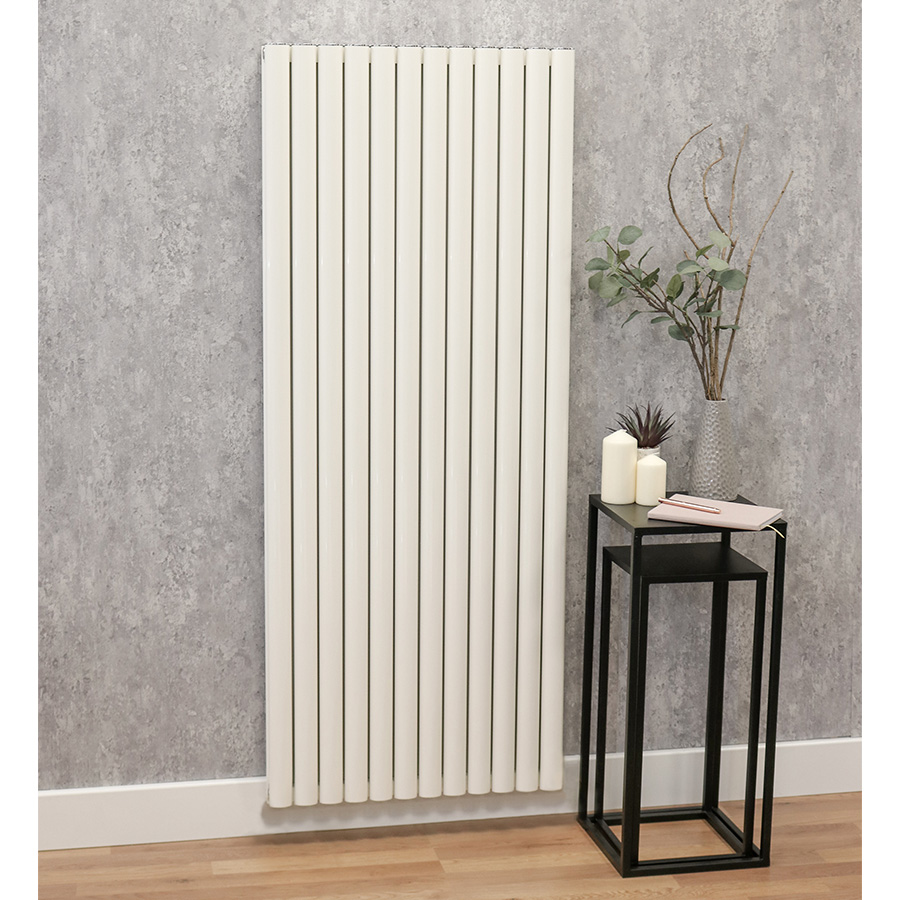

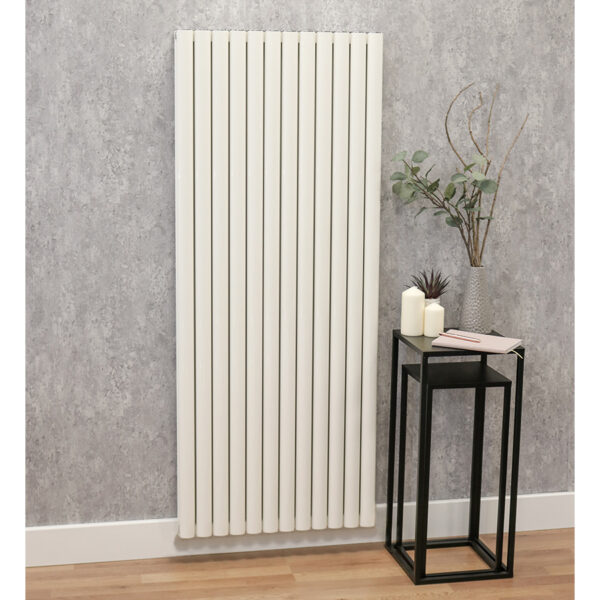

MODEL SHOWN: VSG1512W (White RAL 9010)

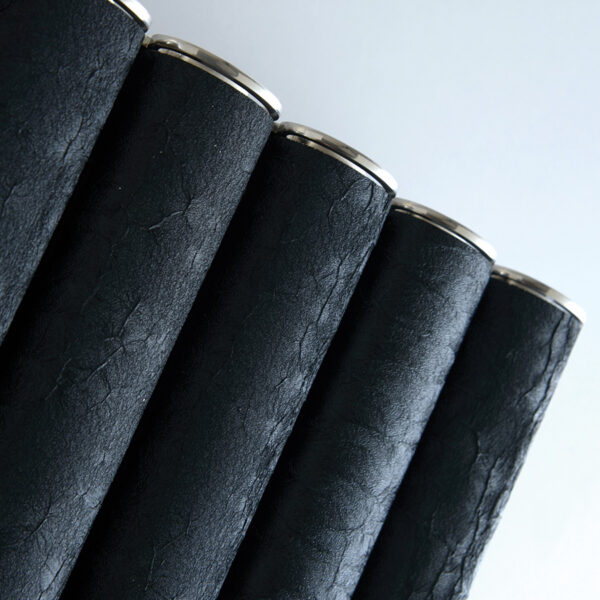

MODEL SHOWN: VSG611CR (Crocodile Texture in Black)

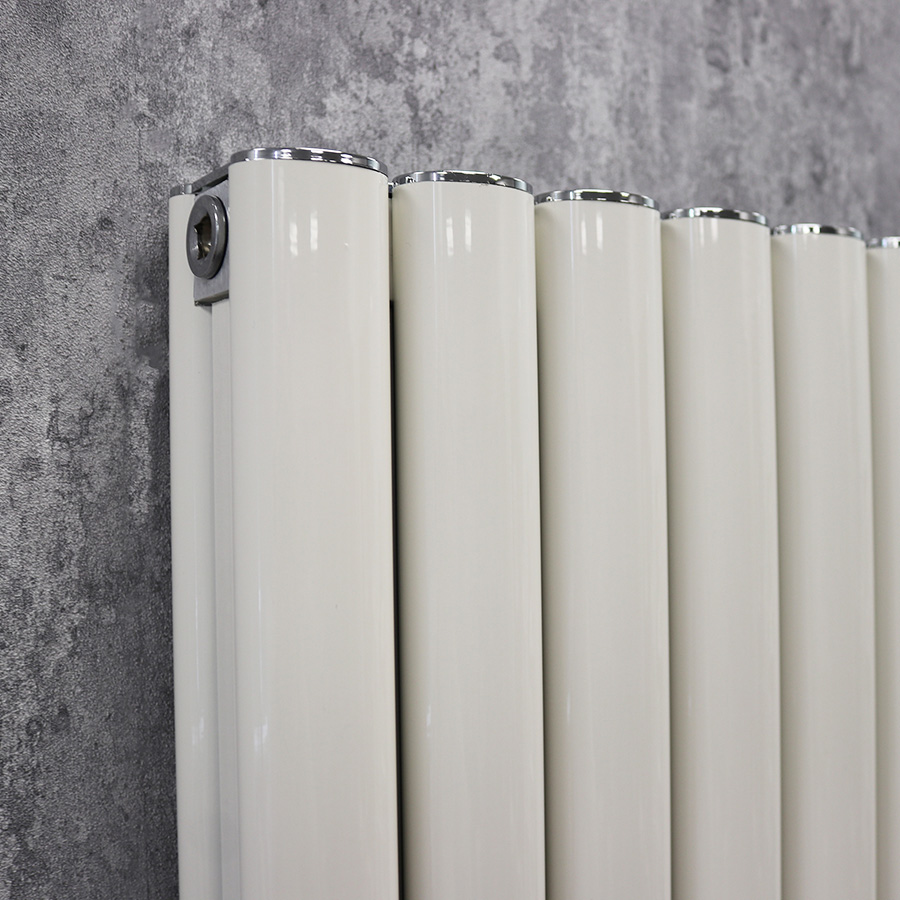

MODEL SHOWN: VSG1512W (White RAL 9010)

Visage

The curved panels of the Visage make this an attractive radiator that will complement any room. You can choose your own RAL colour or textured finish to make a stunning interior statement.

The details
• 10-Year Warranty
• Available in 38 size options
• Available in White RAL 9010, any RAL colour, Wood Effect, Crocodile Texture & Anodised finishes
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

SKU: Visage Categories: Aluminium, Range, Visage Where to buy

The Range

MAX WORKING PRESSURE (BAR)

95 DEGREES MAX WORKING TEMP.

Closed System

Aluminium

VERTICAL MOUNTING

10 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
	VSG1506AO	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Other Anodised	£559.65
	VSG1506CR	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Crocodile Texture	£580.37
	VSG1506DX	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Dupont Micrograin	£472.59
VIS1506GA	VSG1506GA	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Gloss Anodised	£476.74
VIS1506MA	VSG1506MA	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Matt Anodised	£435.28
	VSG1506OW	1500	295	75	H	N/A	6	3173	929	3.1	22.7	White RAL 9016/9001/1013	£435.28
	VSG1506RAL	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Any RAL Colour	£518.19
VIS1506W	VSG1506W	1500	295	75	H	N/A	6	3173	929	3.1	22.7	White RAL 9010	£414.55
VIS1506WE	VSG1506WE	1500	295	75	H	N/A	6	3173	929	3.1	22.7	Wood Effect	£559.65
	VSG1508AO	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Other Anodised	£743.32
	VSG1508CR	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Crocodile Texture	£770.85
	VSG1508DX	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Dupont Micrograin	£627.69
VIS1508GA	VSG1508GA	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Gloss Anodised	£633.20
VIS1508MA	VSG1508MA	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Matt Anodised	£578.14
	VSG1508OW	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	White RAL 9016/9001/1013	£578.14
	VSG1508RAL	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Any RAL Colour	£688.26
VIS1508W	VSG1508W	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	White RAL 9010	£550.61
VIS1508WE	VSG1508WE	1500	395	75	H	N/A	8	4228	1238	4.1	30.3	Wood Effect	£743.32
	VSG1510AO	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Other Anodised	£926.44
	VSG1510CR	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Crocodile Texture	£960.75
	VSG1510DX	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Dupont Micrograin	£782.33
VIS1510GA	VSG1510GA	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Gloss Anodised	£789.19
VIS1510MA	VSG1510MA	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Matt Anodised	£720.56
	VSG1510OW	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	White RAL 9016/9001/1013	£720.56
	VSG1510RAL	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Any RAL Colour	£857.81
VIS1510W	VSG1510W	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	White RAL 9010	£686.25
VIS1510WE	VSG1510WE	1500	495	75	H	N/A	10	5286	1548	5.2	37.8	Wood Effect	£926.44
	VSG1512AO	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Other Anodised	£1,110.11
	VSG1512CR	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Crocodile Texture	£1,151.23
	VSG1512DX	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Dupont Micrograin	£937.43
VIS1512GA	VSG1512GA	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Gloss Anodised	£945.65
VIS1512MA	VSG1512MA	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Matt Anodised	£863.42
	VSG1512OW	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	White RAL 9016/9001/1013	£863.42
	VSG1512RAL	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Any RAL Colour	£1,027.88
VIS1512W	VSG1512W	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	White RAL 9010	£822.31
VIS1512WE	VSG1512WE	1500	595	75	H	N/A	12	6345	1858	6.2	45.3	Wood Effect	£1,110.11
	VSG1805AO	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Other Anodised	£559.65
	VSG1805CR	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Crocodile Texture	£580.37
	VSG1805DX	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Dupont Micrograin	£472.59
VIS1805GA	VSG1805GA	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Gloss Anodised	£476.74
VIS1805MA	VSG1805MA	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Matt Anodised	£435.28
	VSG1805OW	1800	245	75	H	N/A	5	3060	896	3.1	22.7	White RAL 9016/9001/1013	£435.28
	VSG1805RAL	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Any RAL Colour	£518.19
VIS1805W	VSG1805W	1800	245	75	H	N/A	5	3060	896	3.1	22.7	White RAL 9010	£414.55
VIS1805WE	VSG1805WE	1800	245	75	H	N/A	5	3060	896	3.1	22.7	Wood Effect	£559.65
	VSG1807AO	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Other Anodised	£781.67
	VSG1807CR	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Crocodile Texture	£810.62
	VSG1807DX	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Dupont Micrograin	£660.08
VIS1807GA	VSG1807GA	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Gloss Anodised	£665.87
VIS1807MA	VSG1807MA	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Matt Anodised	£607.96
	VSG1807OW	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	White RAL 9016/9001/1013	£607.96
	VSG1807RAL	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Any RAL Colour	£723.77
VIS1807W	VSG1807W	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	White RAL 9010	£579.01
VIS1807WE	VSG1807WE	1800	345	75	H	N/A	7	4286	1255	4.3	31.7	Wood Effect	£781.67
	VSG1809AO	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Other Anodised	£1,003.69
	VSG1809CR	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Crocodile Texture	£1,040.86
	VSG1809DX	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Dupont Micrograin	£847.56
VIS1809GA	VSG1809GA	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Gloss Anodised	£855.00
VIS1809MA	VSG1809MA	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Matt Anodised	£780.65
	VSG1809OW	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	White RAL 9016/9001/1013	£780.65
	VSG1809RAL	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Any RAL Colour	£929.34
VIS1809W	VSG1809W	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	White RAL 9010	£743.47
VIS1809WE	VSG1809WE	1800	445	75	H	N/A	9	5508	1613	5.6	40.8	Wood Effect	£1,003.69
	VSG1810AO	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Other Anodised	£1,114.43
	VSG1810CR	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Crocodile Texture	£1,155.70
	VSG1810DX	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Dupont Micrograin	£941.07
VIS1810GA	VSG1810GA	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Gloss Anodised	£949.33
VIS1810MA	VSG1810MA	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Matt Anodised	£866.78
	VSG1810OW	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	White RAL 9016/9001/1013	£866.78
	VSG1810RAL	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Any RAL Colour	£1,031.88
VIS1810W	VSG1810W	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	White RAL 9010	£825.50
VIS1810WE	VSG1810WE	1800	495	75	H	N/A	10	6120	1792	6.2	45.3	Wood Effect	£1,114.43
	VSG1812AO	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Other Anodised	£1,336.45
	VSG1812CR	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Crocodile Texture	£1,385.95
	VSG1812DX	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Dupont Micrograin	£1,128.56
VIS1812GA	VSG1812GA	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Gloss Anodised	£1,138.46
VIS1812MA	VSG1812MA	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Matt Anodised	£1,039.46
	VSG1812OW	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	White RAL 9016/9001/1013	£1,039.46
	VSG1812RAL	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Any RAL Colour	£1,237.46
VIS1812W	VSG1812W	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	White RAL 9010	£989.96
VIS1812WE	VSG1812WE	1800	595	75	H	N/A	12	7346	2151	7.5	54.4	Wood Effect	£1,336.45
	VSG1814AO	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Other Anodised	£1,554.16
	VSG1814CR	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Crocodile Texture	£1,611.72
	VSG1814DX	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Dupont Micrograin	£1,312.40
VIS1814GA	VSG1814GA	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Gloss Anodised	£1,323.91
VIS1814MA	VSG1814MA	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Matt Anodised	£1,208.79
	VSG1814OW	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	White RAL 9016/9001/1013	£1,208.79
	VSG1814RAL	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Any RAL Colour	£1,439.04
VIS1814W	VSG1814W	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	White RAL 9010	£1,151.23
VIS1814WE	VSG1814WE	1800	695	75	H	N/A	14	8568	2509	8.7	63.4	Wood Effect	£1,554.16
	VSG2003AO	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Other Anodised	£381.92
	VSG2003CR	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Crocodile Texture	£396.07
	VSG2003DX	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Dupont Micrograin	£322.51
VIS2003GA	VSG2003GA	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Gloss Anodised	£325.34
VIS2003MA	VSG2003MA	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Matt Anodised	£297.05
	VSG2003OW	2000	145	75	H	N/A	3	2015	590	2.1	15.2	White RAL 9016/9001/1013	£297.05
	VSG2003RAL	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Any RAL Colour	£353.63
VIS2003W	VSG2003W	2000	145	75	H	N/A	3	2015	590	2.1	15.2	White RAL 9010	£282.91
VIS2003WE	VSG2003WE	2000	145	75	H	N/A	3	2015	590	2.1	15.2	Wood Effect	£381.92
	VSG2007AO	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Other Anodised	£858.38
	VSG2007CR	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Crocodile Texture	£890.17
	VSG2007DX	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Dupont Micrograin	£724.85
VIS2007GA	VSG2007GA	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Gloss Anodised	£731.21
VIS2007MA	VSG2007MA	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Matt Anodised	£667.63
	VSG2007OW	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	White RAL 9016/9001/1013	£667.63
	VSG2007RAL	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Any RAL Colour	£794.79
VIS2007W	VSG2007W	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	White RAL 9010	£635.83
VIS2007WE	VSG2007WE	2000	345	75	H	N/A	7	4702	1377	4.8	35.3	Wood Effect	£858.38
	VSG2009AO	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Other Anodised	£1,102.02
	VSG2009CR	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Crocodile Texture	£1,142.83
	VSG2009DX	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Dupont Micrograin	£930.59
VIS2009GA	VSG2009GA	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Gloss Anodised	£938.75
VIS2009MA	VSG2009MA	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Matt Anodised	£857.12
	VSG2009OW	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	White RAL 9016/9001/1013	£857.12
	VSG2009RAL	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Any RAL Colour	£1,020.38
VIS2009W	VSG2009W	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	White RAL 9010	£816.31
VIS2009WE	VSG2009WE	2000	445	75	H	N/A	9	6048	1771	6.2	45.5	Wood Effect	£1,102.02
	VSG2010AO	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Other Anodised	£1,225.71
	VSG2010CR	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Crocodile Texture	£1,271.11
	VSG2010DX	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Dupont Micrograin	£1,035.05
VIS2010GA	VSG2010GA	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Gloss Anodised	£1,044.13
VIS2010MA	VSG2010MA	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Matt Anodised	£953.33
	VSG2010OW	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	White RAL 9016/9001/1013	£953.33
	VSG2010RAL	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Any RAL Colour	£1,134.92
VIS2010W	VSG2010W	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	White RAL 9010	£907.94
VIS2010WE	VSG2010WE	2000	495	75	H	N/A	10	6120	1792	6.9	50.5	Wood Effect	£1,225.71
	VSG2012AO	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Other Anodised	£1,468.81
	VSG2012CR	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Crocodile Texture	£1,523.21
	VSG2012DX	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Dupont Micrograin	£1,240.33
VIS2012GA	VSG2012GA	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Gloss Anodised	£1,251.21
VIS2012MA	VSG2012MA	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Matt Anodised	£1,142.41
	VSG2012OW	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	White RAL 9016/9001/1013	£1,142.41
	VSG2012RAL	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Any RAL Colour	£1,360.01
VIS2012W	VSG2012W	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	White RAL 9010	£1,088.01
VIS2012WE	VSG2012WE	2000	595	75	H	N/A	12	8063	2361	8.3	60.5	Wood Effect	£1,468.81
	VSG2014AO	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Other Anodised	£1,712.44
	VSG2014CR	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Crocodile Texture	£1,775.86
	VSG2014DX	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Dupont Micrograin	£1,446.06
VIS2014GA	VSG2014GA	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Gloss Anodised	£1,458.74
VIS2014MA	VSG2014MA	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Matt Anodised	£1,331.89
	VSG2014OW	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	White RAL 9016/9001/1013	£1,331.89
	VSG2014RAL	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Any RAL Colour	£1,585.59
VIS2014W	VSG2014W	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	White RAL 9010	£1,268.47
VIS2014WE	VSG2014WE	2000	695	75	H	N/A	14	9405	2754	9.7	70.6	Wood Effect	£1,712.44
	VSG411AO	450	545	75	H	N/A	11	2141	627	1.1	8	Other Anodised	£410.55
	VSG411CR	450	545	75	H	N/A	11	2141	627	1.1	8	Crocodile Texture	£425.75
	VSG411DX	450	545	75	H	N/A	11	2141	627	1.1	8	Dupont Micrograin	£346.68
VIS411GA	VSG411GA	450	545	75	H	N/A	11	2141	627	1.1	8	Gloss Anodised	£349.73
VIS411MA	VSG411MA	450	545	75	H	N/A	11	2141	627	1.1	8	Matt Anodised	£319.31
	VSG411OW	450	545	75	H	N/A	11	2141	627	1.1	8	White RAL 9016/9001/1013	£319.31
	VSG411RAL	450	545	75	H	N/A	11	2141	627	1.1	8	Any RAL Colour	£380.14
VIS411W	VSG411W	450	545	75	H	N/A	11	2141	627	1.1	8	White RAL 9010	£304.11
VIS411WE	VSG411WE	450	545	75	H	N/A	11	2141	627	1.1	8	Wood Effect	£410.55
	VSG414AO	450	695	75	H	N/A	14	2725	798	1.4	10.1	Other Anodised	£522.91
	VSG414CR	450	695	75	H	N/A	14	2725	798	1.4	10.1	Crocodile Texture	£542.28
	VSG414DX	450	695	75	H	N/A	14	2725	798	1.4	10.1	Dupont Micrograin	£441.57
VIS414GA	VSG414GA	450	695	75	H	N/A	14	2725	798	1.4	10.1	Gloss Anodised	£445.44
VIS414MA	VSG414MA	450	695	75	H	N/A	14	2725	798	1.4	10.1	Matt Anodised	£406.71
	VSG414OW	450	695	75	H	N/A	14	2725	798	1.4	10.1	White RAL 9016/9001/1013	£406.71
	VSG414RAL	450	695	75	H	N/A	14	2725	798	1.4	10.1	Any RAL Colour	£484.18
VIS414W	VSG414W	450	695	75	H	N/A	14	2725	798	1.4	10.1	White RAL 9010	£387.34
VIS414WE	VSG414WE	450	695	75	H	N/A	14	2725	798	1.4	10.1	Wood Effect	£522.91
	VSG416AO	450	795	75	H	N/A	16	3114	912	1.6	11.6	Other Anodised	£596.38
	VSG416CR	450	795	75	H	N/A	16	3114	912	1.6	11.6	Crocodile Texture	£618.47
	VSG416DX	450	795	75	H	N/A	16	3114	912	1.6	11.6	Dupont Micrograin	£503.61
VIS416GA	VSG416GA	450	795	75	H	N/A	16	3114	912	1.6	11.6	Gloss Anodised	£508.03
VIS416MA	VSG416MA	450	795	75	H	N/A	16	3114	912	1.6	11.6	Matt Anodised	£463.85
	VSG416OW	450	795	75	H	N/A	16	3114	912	1.6	11.6	White RAL 9016/9001/1013	£463.85
	VSG416RAL	450	795	75	H	N/A	16	3114	912	1.6	11.6	Any RAL Colour	£552.20
VIS416W	VSG416W	450	795	75	H	N/A	16	3114	912	1.6	11.6	White RAL 9010	£441.76
VIS416WE	VSG416WE	450	795	75	H	N/A	16	3114	912	1.6	11.6	Wood Effect	£596.38
	VSG418AO	450	895	75	H	N/A	18	3504	1026	1.8	13	Other Anodised	£674.71
	VSG418CR	450	895	75	H	N/A	18	3504	1026	1.8	13	Crocodile Texture	£699.70
	VSG418DX	450	895	75	H	N/A	18	3504	1026	1.8	13	Dupont Micrograin	£569.76
VIS418GA	VSG418GA	450	895	75	H	N/A	18	3504	1026	1.8	13	Gloss Anodised	£574.76
VIS418MA	VSG418MA	450	895	75	H	N/A	18	3504	1026	1.8	13	Matt Anodised	£524.78
	VSG418OW	450	895	75	H	N/A	18	3504	1026	1.8	13	White RAL 9016/9001/1013	£524.78
	VSG418RAL	450	895	75	H	N/A	18	3504	1026	1.8	13	Any RAL Colour	£624.73
VIS418W	VSG418W	450	895	75	H	N/A	18	3504	1026	1.8	13	White RAL 9010	£499.79
VIS418WE	VSG418WE	450	895	75	H	N/A	18	3504	1026	1.8	13	Wood Effect	£674.71
	VSG420AO	450	995	75	H	N/A	20	3893	1140	2	14.5	Other Anodised	£748.18
	VSG420CR	450	995	75	H	N/A	20	3893	1140	2	14.5	Crocodile Texture	£775.89
	VSG420DX	450	995	75	H	N/A	20	3893	1140	2	14.5	Dupont Micrograin	£631.80
VIS420GA	VSG420GA	450	995	75	H	N/A	20	3893	1140	2	14.5	Gloss Anodised	£637.34
VIS420MA	VSG420MA	450	995	75	H	N/A	20	3893	1140	2	14.5	Matt Anodised	£581.92
	VSG420OW	450	995	75	H	N/A	20	3893	1140	2	14.5	White RAL 9016/9001/1013	£581.92
	VSG420RAL	450	995	75	H	N/A	20	3893	1140	2	14.5	Any RAL Colour	£692.76
VIS420W	VSG420W	450	995	75	H	N/A	20	3893	1140	2	14.5	White RAL 9010	£554.21
VIS420WE	VSG420WE	450	995	75	H	N/A	20	3893	1140	2	14.5	Wood Effect	£748.18
	VSG424AO	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Other Anodised	£894.58
	VSG424CR	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Crocodile Texture	£927.71
	VSG424DX	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Dupont Micrograin	£755.42
VIS424GA	VSG424GA	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Gloss Anodised	£762.05
VIS424MA	VSG424MA	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Matt Anodised	£695.78
	VSG424OW	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	White RAL 9016/9001/1013	£695.78
	VSG424RAL	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Any RAL Colour	£828.31
VIS424W	VSG424W	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	White RAL 9010	£662.65
VIS424WE	VSG424WE	450	1195	75	H	N/A	24	4672	1368	2.4	17.2	Wood Effect	£894.58
	VSG428AO	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Other Anodised	£1,046.37
	VSG428CR	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Crocodile Texture	£1,085.12
	VSG428DX	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Dupont Micrograin	£883.60
VIS428GA	VSG428GA	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Gloss Anodised	£891.35
VIS428MA	VSG428MA	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Matt Anodised	£813.84
	VSG428OW	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	White RAL 9016/9001/1013	£813.84
	VSG428RAL	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Any RAL Colour	£968.86
VIS428W	VSG428W	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	White RAL 9010	£775.09
VIS428WE	VSG428WE	450	1395	75	H	N/A	28	5450	1596	2.8	20.2	Wood Effect	£1,046.37
	VSG432AO	450	1595	75	H	N/A	32	6229	1824	3.2	23	Other Anodised	£1,192.76
	VSG432CR	450	1595	75	H	N/A	32	6229	1824	3.2	23	Crocodile Texture	£1,236.94
	VSG432DX	450	1595	75	H	N/A	32	6229	1824	3.2	23	Dupont Micrograin	£1,007.22
VIS432GA	VSG432GA	450	1595	75	H	N/A	32	6229	1824	3.2	23	Gloss Anodised	£1,016.06
VIS432MA	VSG432MA	450	1595	75	H	N/A	32	6229	1824	3.2	23	Matt Anodised	£927.70
	VSG432OW	450	1595	75	H	N/A	32	6229	1824	3.2	23	White RAL 9016/9001/1013	£927.70
	VSG432RAL	450	1595	75	H	N/A	32	6229	1824	3.2	23	Any RAL Colour	£1,104.41
VIS432W	VSG432W	450	1595	75	H	N/A	32	6229	1824	3.2	23	White RAL 9010	£883.53
VIS432WE	VSG432WE	450	1595	75	H	N/A	32	6229	1824	3.2	23	Wood Effect	£1,192.76
	VSG436AO	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Other Anodised	£1,328.89
	VSG436CR	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Crocodile Texture	£1,378.10
	VSG436DX	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Dupont Micrograin	£1,122.17
VIS436GA	VSG436GA	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Gloss Anodised	£1,132.01
VIS436MA	VSG436MA	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Matt Anodised	£1,033.58
	VSG436OW	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	White RAL 9016/9001/1013	£1,033.58
	VSG436RAL	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Any RAL Colour	£1,230.45
VIS436W	VSG436W	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	White RAL 9010	£984.36
VIS436WE	VSG436WE	450	1795	75	H	N/A	36	7008	2052	3.6	26.1	Wood Effect	£1,328.89
	VSG440AO	450	1995	75	H	N/A	40	7786	2280	4	28.9	Other Anodised	£1,473.67
	VSG440CR	450	1995	75	H	N/A	40	7786	2280	4	28.9	Crocodile Texture	£1,528.25
	VSG440DX	450	1995	75	H	N/A	40	7786	2280	4	28.9	Dupont Micrograin	£1,244.43
VIS440GA	VSG440GA	450	1995	75	H	N/A	40	7786	2280	4	28.9	Gloss Anodised	£1,255.35
VIS440MA	VSG440MA	450	1995	75	H	N/A	40	7786	2280	4	28.9	Matt Anodised	£1,146.19
	VSG440OW	450	1995	75	H	N/A	40	7786	2280	4	28.9	White RAL 9016/9001/1013	£1,146.19
	VSG440RAL	450	1995	75	H	N/A	40	7786	2280	4	28.9	Any RAL Colour	£1,364.51
VIS440W	VSG440W	450	1995	75	H	N/A	40	7786	2280	4	28.9	White RAL 9010	£1,091.61
VIS440WE	VSG440WE	450	1995	75	H	N/A	40	7786	2280	4	28.9	Wood Effect	£1,473.67
	VSG607AO	600	345	75	H	N/A	7	1796	526	1.5	10.6	Other Anodised	£339.78
	VSG607CR	600	345	75	H	N/A	7	1796	526	1.5	10.6	Crocodile Texture	£352.37
	VSG607DX	600	345	75	H	N/A	7	1796	526	1.5	10.6	Dupont Micrograin	£286.93
VIS607GA	VSG607GA	600	345	75	H	N/A	7	1796	526	1.5	10.6	Gloss Anodised	£289.44
VIS607MA	VSG607MA	600	345	75	H	N/A	7	1796	526	1.5	10.6	Matt Anodised	£264.27
	VSG607OW	600	345	75	H	N/A	7	1796	526	1.5	10.6	White RAL 9016/9001/1013	£264.27
	VSG607RAL	600	345	75	H	N/A	7	1796	526	1.5	10.6	Any RAL Colour	£314.61
VIS607W	VSG607W	600	345	75	H	N/A	7	1796	526	1.5	10.6	White RAL 9010	£251.69
VIS607WE	VSG607WE	600	345	75	H	N/A	7	1796	526	1.5	10.6	Wood Effect	£339.78
	VSG609AO	600	445	75	H	N/A	9	2309	676	1.8	13.5	Other Anodised	£432.16
	VSG609CR	600	445	75	H	N/A	9	2309	676	1.8	13.5	Crocodile Texture	£448.17
	VSG609DX	600	445	75	H	N/A	9	2309	676	1.8	13.5	Dupont Micrograin	£364.94
VIS609GA	VSG609GA	600	445	75	H	N/A	9	2309	676	1.8	13.5	Gloss Anodised	£368.14
VIS609MA	VSG609MA	600	445	75	H	N/A	9	2309	676	1.8	13.5	Matt Anodised	£336.13
	VSG609OW	600	445	75	H	N/A	9	2309	676	1.8	13.5	White RAL 9016/9001/1013	£336.13
	VSG609RAL	600	445	75	H	N/A	9	2309	676	1.8	13.5	Any RAL Colour	£400.15
VIS609W	VSG609W	600	445	75	H	N/A	9	2309	676	1.8	13.5	White RAL 9010	£320.12
VIS609WE	VSG609WE	600	445	75	H	N/A	9	2309	676	1.8	13.5	Wood Effect	£432.16
	VSG611AO	600	545	75	H	N/A	11	2821	826	2.1	15.4	Other Anodised	£528.32
	VSG611CR	600	545	75	H	N/A	11	2821	826	2.1	15.4	Crocodile Texture	£547.89
	VSG611DX	600	545	75	H	N/A	11	2821	826	2.1	15.4	Dupont Micrograin	£446.14
VIS611GA	VSG611GA	600	545	75	H	N/A	11	2821	826	2.1	15.4	Gloss Anodised	£450.05
VIS611MA	VSG611MA	600	545	75	H	N/A	11	2821	826	2.1	15.4	Matt Anodised	£410.91
	VSG611OW	600	545	75	H	N/A	11	2821	826	2.1	15.4	White RAL 9016/9001/1013	£410.91
	VSG611RAL	600	545	75	H	N/A	11	2821	826	2.1	15.4	Any RAL Colour	£489.18
VIS611W	VSG611W	600	545	75	H	N/A	11	2821	826	2.1	15.4	White RAL 9010	£391.35
VIS611WE	VSG611WE	600	545	75	H	N/A	11	2821	826	2.1	15.4	Wood Effect	£528.32
	VSG614AO	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Other Anodised	£672.55
	VSG614CR	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Crocodile Texture	£697.46
	VSG614DX	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Dupont Micrograin	£567.94
VIS614GA	VSG614GA	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Gloss Anodised	£572.92
VIS614MA	VSG614MA	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Matt Anodised	£523.10
	VSG614OW	600	695	75	H	N/A	14	3589	1051	2.6	19.3	White RAL 9016/9001/1013	£523.10
	VSG614RAL	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Any RAL Colour	£622.74
VIS614W	VSG614W	600	695	75	H	N/A	14	3589	1051	2.6	19.3	White RAL 9010	£498.19
VIS614WE	VSG614WE	600	695	75	H	N/A	14	3589	1051	2.6	19.3	Wood Effect	£672.55
	VSG616AO	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Other Anodised	£768.71
	VSG616CR	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Crocodile Texture	£797.18
	VSG616DX	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Dupont Micrograin	£649.13
VIS616GA	VSG616GA	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Gloss Anodised	£654.83
VIS616MA	VSG616MA	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Matt Anodised	£597.88
	VSG616OW	600	795	75	H	N/A	14	4101	1201	3.6	26.1	White RAL 9016/9001/1013	£597.88
	VSG616RAL	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Any RAL Colour	£711.77
VIS616W	VSG616W	600	795	75	H	N/A	14	4101	1201	3.6	26.1	White RAL 9010	£569.41
VIS616WE	VSG616WE	600	795	75	H	N/A	14	4101	1201	3.6	26.1	Wood Effect	£768.71
	VSG618AO	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Other Anodised	£864.32
	VSG618CR	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Crocodile Texture	£896.33
	VSG618DX	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Dupont Micrograin	£729.87
VIS618GA	VSG618GA	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Gloss Anodised	£736.27
VIS618MA	VSG618MA	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Matt Anodised	£672.25
	VSG618OW	600	895	75	H	N/A	18	4617	1352	4.8	34.7	White RAL 9016/9001/1013	£672.25
	VSG618RAL	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Any RAL Colour	£800.29
VIS618W	VSG618W	600	895	75	H	N/A	18	4617	1352	4.8	34.7	White RAL 9010	£640.23
VIS618WE	VSG618WE	600	895	75	H	N/A	18	4617	1352	4.8	34.7	Wood Effect	£864.32
	VSG620AO	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Other Anodised	£961.02
	VSG620CR	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Crocodile Texture	£996.61
	VSG620DX	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Dupont Micrograin	£811.52
VIS620GA	VSG620GA	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Gloss Anodised	£818.64
VIS620MA	VSG620MA	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Matt Anodised	£747.46
	VSG620OW	600	995	75	H	N/A	20	5129	1502	5.3	38.6	White RAL 9016/9001/1013	£747.46
	VSG620RAL	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Any RAL Colour	£889.83
VIS620W	VSG620W	600	995	75	H	N/A	20	5129	1502	5.3	38.6	White RAL 9010	£711.86
VIS620WE	VSG620WE	600	995	75	H	N/A	20	5129	1502	5.3	38.6	Wood Effect	£961.02
	VSG624AO	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Other Anodised	£1,153.32
	VSG624CR	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Crocodile Texture	£1,196.04
	VSG624DX	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Dupont Micrograin	£973.92
VIS624GA	VSG624GA	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Gloss Anodised	£982.46
VIS624MA	VSG624MA	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Matt Anodised	£897.03
	VSG624OW	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	White RAL 9016/9001/1013	£897.03
	VSG624RAL	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Any RAL Colour	£1,067.89
VIS624W	VSG624W	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	White RAL 9010	£854.31
VIS624WE	VSG624WE	600	1195	75	H	N/A	24	6154	1802	6.3	46.2	Wood Effect	£1,153.32
	VSG628AO	600	1395	75	H	N/A	28	7178	2102	7.4	54	Other Anodised	£1,345.10
	VSG628CR	600	1395	75	H	N/A	28	7178	2102	7.4	54	Crocodile Texture	£1,394.92
	VSG628DX	600	1395	75	H	N/A	28	7178	2102	7.4	54	Dupont Micrograin	£1,135.86
VIS628GA	VSG628GA	600	1395	75	H	N/A	28	7178	2102	7.4	54	Gloss Anodised	£1,145.82
VIS628MA	VSG628MA	600	1395	75	H	N/A	28	7178	2102	7.4	54	Matt Anodised	£1,046.19
	VSG628OW	600	1395	75	H	N/A	28	7178	2102	7.4	54	White RAL 9016/9001/1013	£1,046.19
	VSG628RAL	600	1395	75	H	N/A	28	7178	2102	7.4	54	Any RAL Colour	£1,245.46
VIS628W	VSG628W	600	1395	75	H	N/A	28	7178	2102	7.4	54	White RAL 9010	£996.37
VIS628WE	VSG628WE	600	1395	75	H	N/A	28	7178	2102	7.4	54	Wood Effect	£1,345.10
	VSG632AO	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Other Anodised	£1,537.42
	VSG632CR	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Crocodile Texture	£1,594.36
	VSG632DX	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Dupont Micrograin	£1,298.26
VIS632GA	VSG632GA	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Gloss Anodised	£1,309.65
VIS632MA	VSG632MA	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Matt Anodised	£1,195.77
	VSG632OW	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	White RAL 9016/9001/1013	£1,195.77
	VSG632RAL	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Any RAL Colour	£1,423.53
VIS632W	VSG632W	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	White RAL 9010	£1,138.83
VIS632WE	VSG632WE	600	1595	75	H	N/A	32	8206	2403	8.4	61.7	Wood Effect	£1,537.42
	VSG636AO	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Other Anodised	£1,729.18
	VSG636CR	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Crocodile Texture	£1,793.22
	VSG636DX	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Dupont Micrograin	£1,460.19
VIS636GA	VSG636GA	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Gloss Anodised	£1,473.00
VIS636MA	VSG636MA	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Matt Anodised	£1,344.92
	VSG636OW	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	White RAL 9016/9001/1013	£1,344.92
	VSG636RAL	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Any RAL Colour	£1,601.09

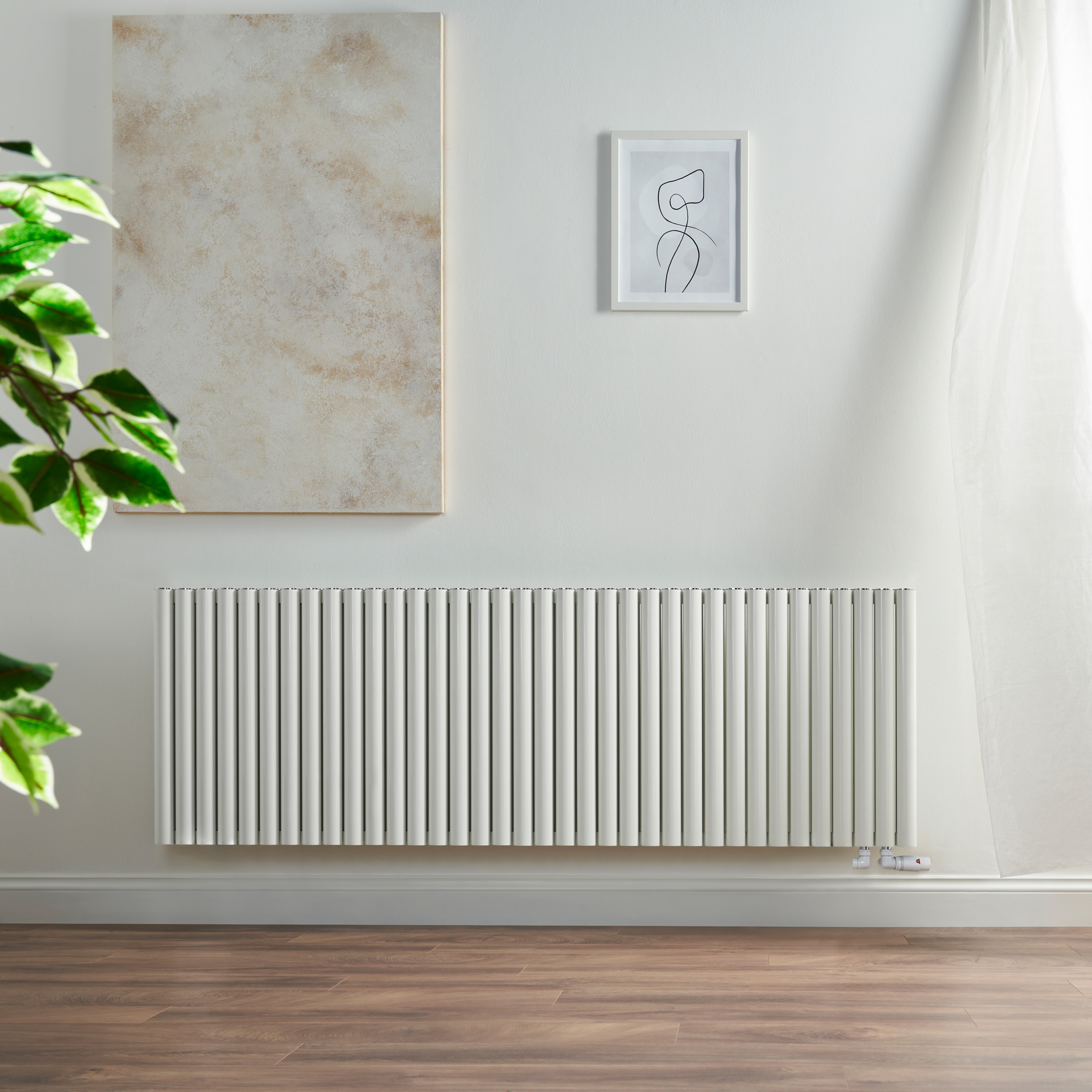

VIS636W	VSG636W	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	White RAL 9010	£1,280.87
VIS636WE	VSG636WE	600	1795	75	H	N/A	36	9231	2703	9.5	69.3	Wood Effect	£1,729.18
	VSG640AO	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Other Anodised	£1,921.50
	VSG640CR	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Crocodile Texture	£1,992.66
	VSG640DX	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Dupont Micrograin	£1,622.60
VIS640GA	VSG640GA	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Gloss Anodised	£1,636.83
VIS640MA	VSG640MA	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Matt Anodised	£1,494.50
	VSG640OW	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	White RAL 9016/9001/1013	£1,494.50
	VSG640RAL	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Any RAL Colour	£1,779.16
VIS640W	VSG640W	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	White RAL 9010	£1,423.33
VIS640WE	VSG640WE	600	1995	75	H	N/A	40	10255	3003	10.6	77.1	Wood Effect	£1,921.50

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
