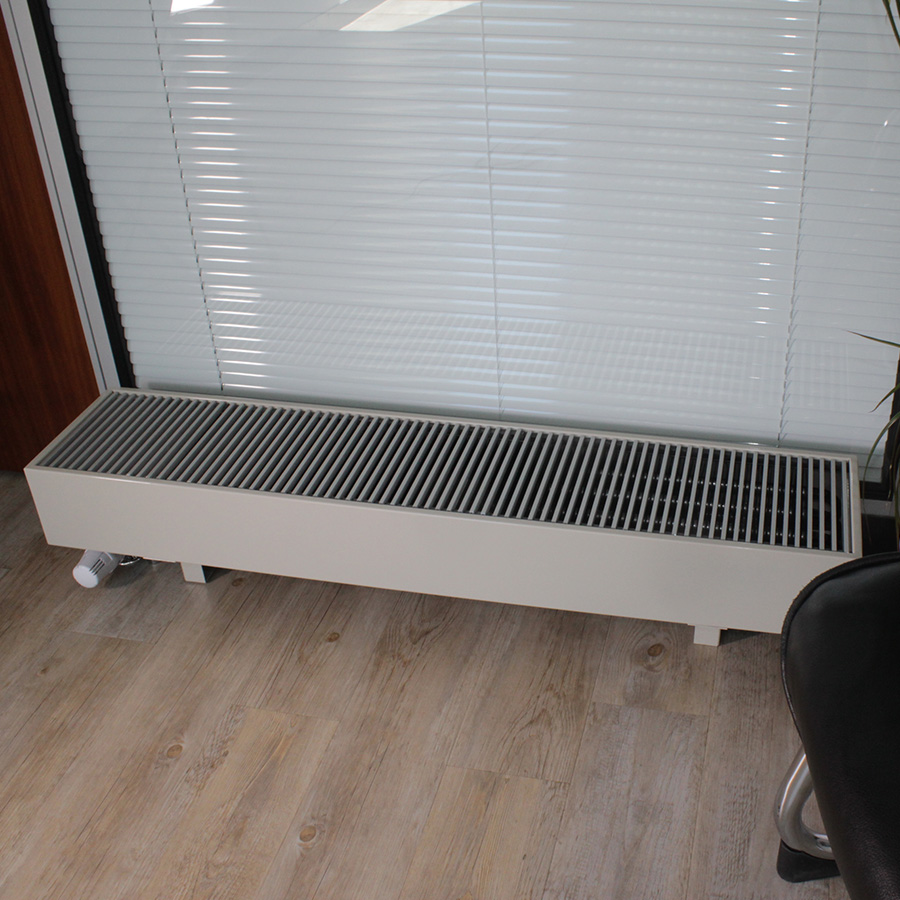

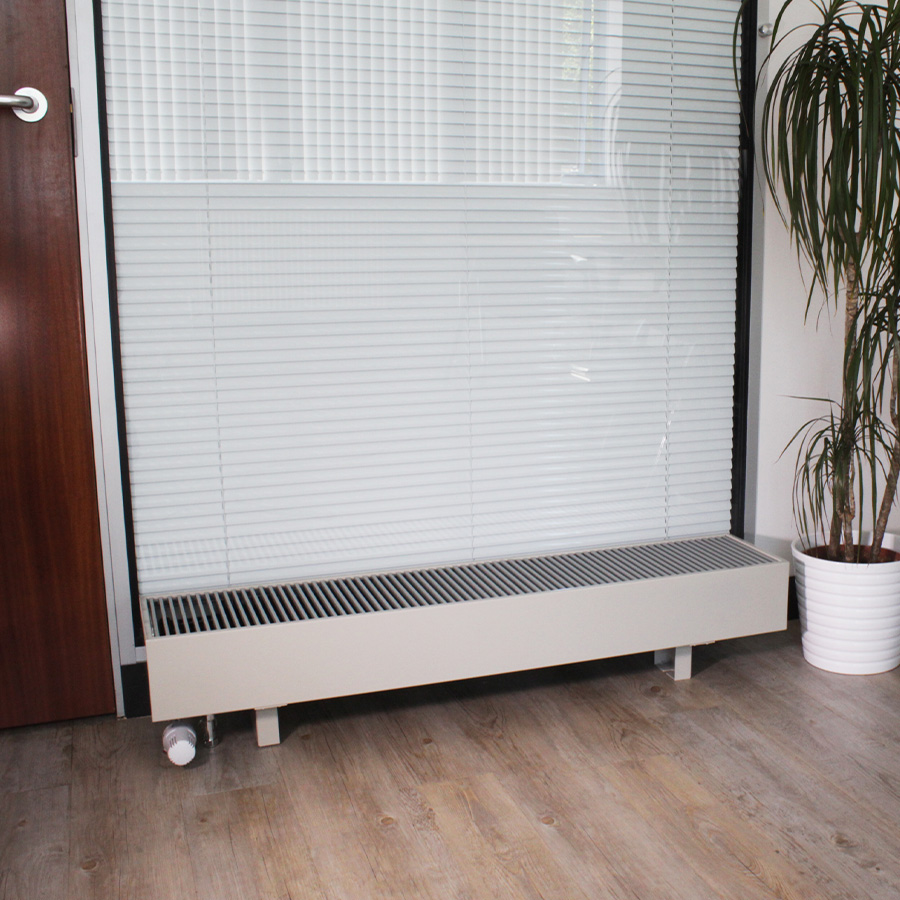

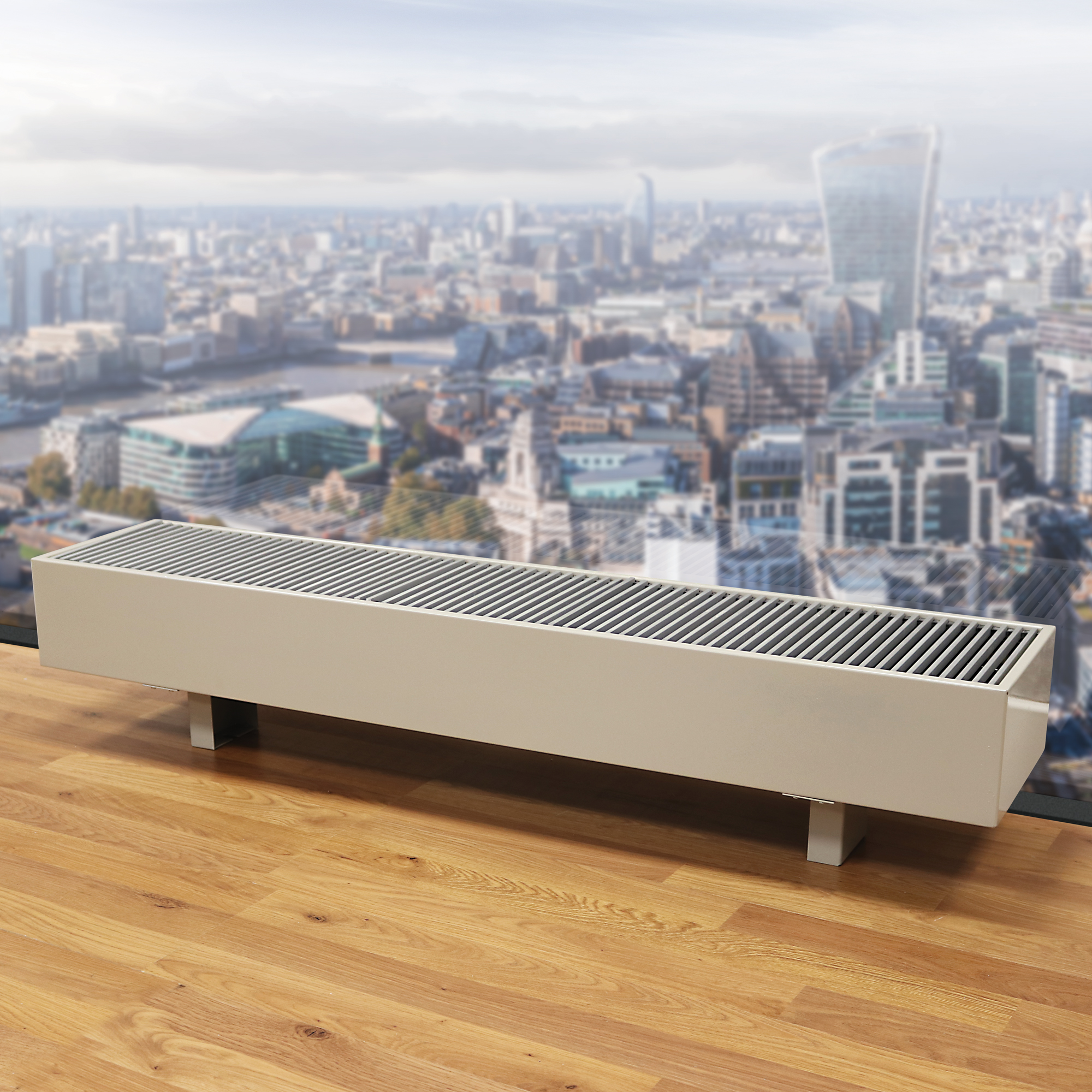

MODEL SHOWN: HP212W (White RAL 9016)

Heat Exchange Convector – Hypo

The Hypo is a floor standing exchange convector radiator that uses less energy due to the low water content. You can choose your own RAL colour to make a stunning interior statement.

The details
• 5-Year Warranty
• Available in 9 size options
• Available in White RAL 9016 or your choice of RAL colour
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

The Range

MAX WORKING PRESSURE (BAR)

95 DEGREES MAX WORKING TEMP.

Closed System

MILD STEEL

HORIZONTAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
	HP208R	200	800	230	H	N/A	N/A	1485	435	2.3	9.9	Any RAL Colour	£548.65
HP208W	HP208W	200	800	230	H	N/A	N/A	1485	435	2.3	9.9	White RAL 9016	£477.08
	HP209R	200	900	230	H	N/A	N/A	1670	489	2.5	11	Any RAL Colour	£583.12
HP209W	HP209W	200	900	230	H	N/A	N/A	1670	489	2.5	11	White RAL 9016	£507.06
	HP210R	200	1000	230	H	N/A	N/A	1855	543	2.8	12.1	Any RAL Colour	£616.96
HP210W	HP210W	200	1000	230	H	N/A	N/A	1855	543	2.8	12.1	White RAL 9016	£536.49
	HP211R	200	1100	230	H	N/A	N/A	2042	598	3.1	13.2	Any RAL Colour	£657.40
HP211W	HP211W	200	1100	230	H	N/A	N/A	2042	598	3.1	13.2	White RAL 9016	£571.65
	HP212R	200	1200	230	H	N/A	N/A	2227	652	3.4	14.3	Any RAL Colour	£721.11
HP212W	HP212W	200	1200	230	H	N/A	N/A	2227	652	3.4	14.3	White RAL 9016	£627.05
	HP214R	200	1400	230	H	N/A	N/A	2599	761	4	15.7	Any RAL Colour	£779.72
HP214W	HP214W	200	1400	230	H	N/A	N/A	2599	761	4	15.7	White RAL 9016	£678.02
	HP216R	200	1600	230	H	N/A	N/A	2969	869	4.5	17.1	Any RAL Colour	£857.39
HP216W	HP216W	200	1600	230	H	N/A	N/A	2969	869	4.5	17.1	White RAL 9016	£745.56
	HP218R	200	1800	230	H	N/A	N/A	3340	978	5.1	18.6	Any RAL Colour	£924.93
HP218W	HP218W	200	1800	230	H	N/A	N/A	3340	978	5.1	18.6	White RAL 9016	£804.29
	HP220R	200	2000	230	H	N/A	N/A	3712	1087	5.7	19.8	Any RAL Colour	£987.87
HP220W	HP220W	200	2000	230	H	N/A	N/A	3712	1087	5.7	19.8	White RAL 9016	£859.01

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
