Tian

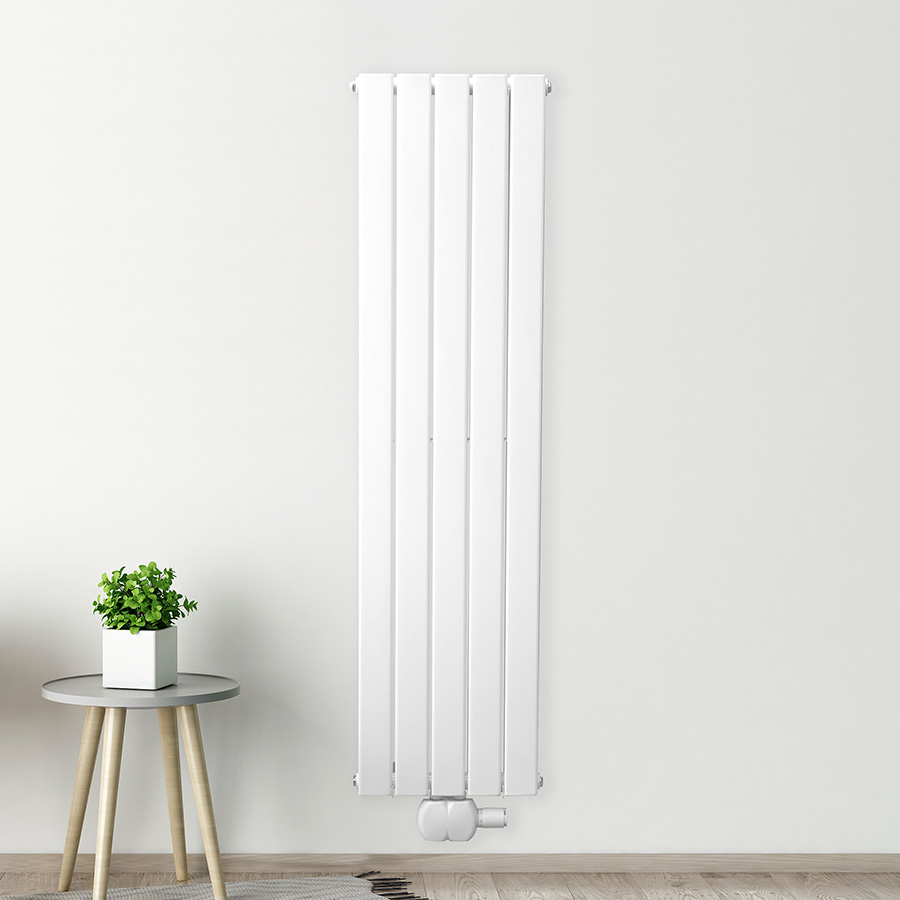

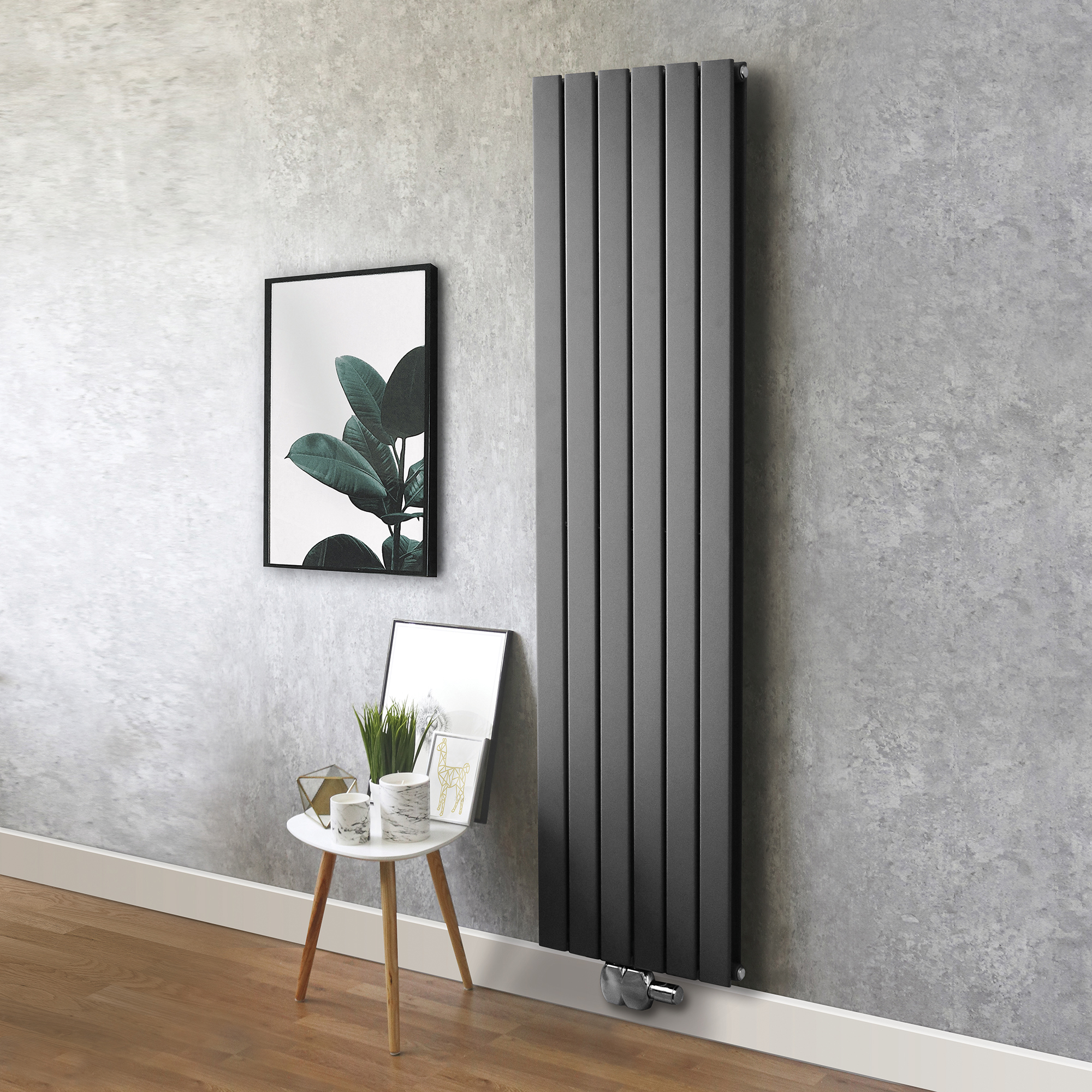

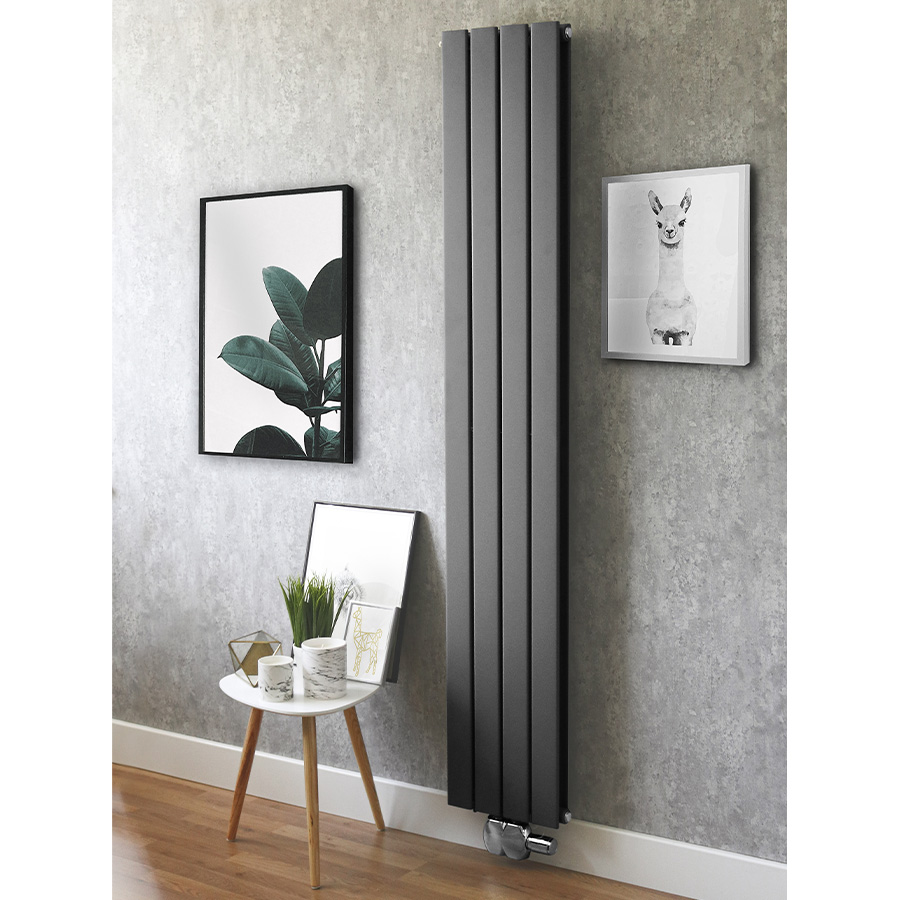

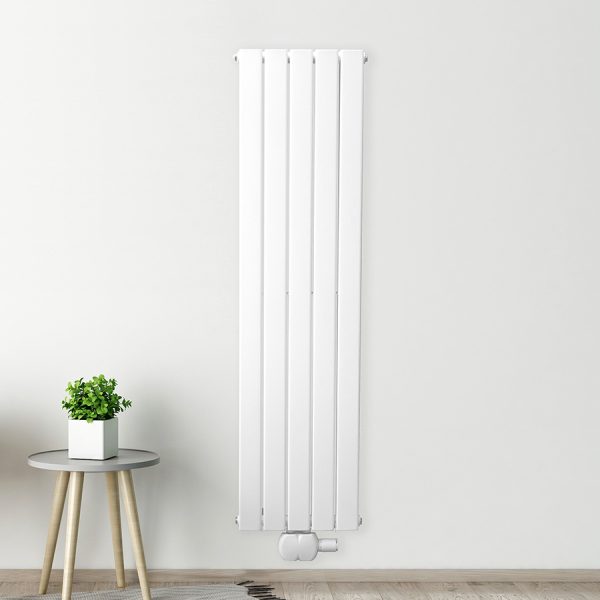

This ultra-modern tubular radiator has a sleek flat panel design to complement any interior. The wide bars of the Tian radiator produces an ultimate heating performance.

The details:
• 5-Year Warranty
• Available in 15 size options
• Available in White RAL 9016 and Grey RAL 7015 finishes
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: Tian Categories: Range, Tian, Tubular Where to buy

The Range

Max Working Pressure 6 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
ND1504G	ND1504GY	1500	313	61	H	N/A	8	2595	760	11.7	22	Grey RAL 7015	£251.95
	ND1504R	1500	313	61	H		8	2595	760	11.7	22	Other Solid Matt RAL	£404.32
	ND1504T	1500	313	61	H		8	2595	760	11.7	22	Metallic Micrograin Matt Paint	£444.75
ND1504W	ND1504W	1500	313	61	H		8	2595	760	11.7	22	White RAL 9016	£237.83
ND1505G	ND1505GY	1500	390	61	H	N/A	10	3244	950	14.7	27.5	Grey RAL 7015	£297.31
	ND1505R	1500	390	61	H	N/A	10	3244	950	14.7	27.5	Other Solid Matt RAL	£472.36
	ND1505T	1500	390	61	H	N/A	10	3244	950	14.7	27.5	Metallic Micrograin Matt Paint	£519.60
ND1505W	ND1505W	1500	390	61	H	N/A	10	3244	950	14.7	27.5	White RAL 9016	£277.86
ND1804G	ND1804GY	1800	313	61	H	N/A	8	3114	912	14.1	26.6	Grey RAL 7015	£279.25
	ND1804R	1800	313	61	H	N/A	8	3114	912	14.1	26.6	Other Solid Matt RAL	£443.67
	ND1804T	1800	313	61	H	N/A	8	3114	912	14.1	26.6	Metallic Micrograin Matt Paint	£488.04
ND1804W	ND1804W	1800	313	61	H	N/A	8	3114	912	14.1	26.6	White RAL 9016	£260.98
ND1805G	ND1805GY	1800	390	61	H	N/A	10	3893	1140	17.6	33.2	Grey RAL 7015	£337.81
	ND1805R	1800	390	61	H	N/A	10	3893	1140	17.6	33.2	Other Solid Matt RAL	£536.70
	ND1805T	1800	390	61	H	N/A	10	3893	1140	17.6	33.2	Metallic Micrograin Matt Paint	£590.37
ND1805W	ND1805W	1800	390	61	H	N/A	10	3893	1140	17.6	33.2	White RAL 9016	£315.71
ND1806G	ND1806GY	1800	467	61	H	N/A	12	4672	1368	21.1	43.2	Grey RAL 7015	£396.45
	ND1806R	1800	467	61	H	N/A	12	4672	1368	21.1	43.2	Other Solid Matt RAL	£629.87
	ND1806T	1800	467	61	H	N/A	12	4672	1368	21.1	43.2	Metallic Micrograin Matt Paint	£692.85
ND1806W	ND1806W	1800	467	61	H	N/A	12	4672	1368	21.1	43.2	White RAL 9016	£370.51
ND1807G	ND1807GY	1800	544	61	H	N/A	14	5450	1596	24.6	50.4	Grey RAL 7015	£455.08
	ND1807R	1800	544	61	H	N/A	14	5450	1596	24.6	50.4	Other Solid Matt RAL	£723.03
	ND1807T	1800	544	61	H	N/A	14	5450	1596	24.6	50.4	Metallic Micrograin Matt Paint	£795.33
ND1807W	ND1807W	1800	544	61	H	N/A	14	5450	1596	24.6	50.4	White RAL 9016	£425.31
	ND2004R	2000	313	61	H	N/A	8	3456	1012	15.6	32.2	Other Solid Matt RAL	£492.19
	ND2004T	2000	313	61	H	N/A	8	3456	1012	15.6	32.2	Metallic Micrograin Matt Paint	£541.41
ND2004W	ND2004W	2000	313	61	H	N/A	8	3456	1012	15.6	32.2	White RAL 9016	£289.52
	ND2005R	2000	390	61	H	N/A	10	4320	1265	19.5	40	Other Solid Matt RAL	£598.64
	ND2005T	2000	390	61	H	N/A	10	4320	1265	19.5	40	Metallic Micrograin Matt Paint	£658.50
ND2005W	ND2005W	2000	390	61	H	N/A	10	4320	1265	19.5	40	White RAL 9016	£352.14
ND2006G	ND2006GY	2000	467	61	H	N/A	12	5184	1518	23.4	48	Grey RAL 7015	£443.92
	ND2006R	2000	467	61	H	N/A	12	5184	1518	23.4	48	Other Solid Matt RAL	£705.30
	ND2006T	2000	467	61	H	N/A	12	5184	1518	23.4	48	Metallic Micrograin Matt Paint	£775.83
ND2006W	ND2006W	2000	467	61	H	N/A	12	5184	1518	23.4	48	White RAL 9016	£414.88
	NS1505R	1500	390	48	H	N/A	5	1803	528	7.4	13.5	Other Solid Matt RAL	£303.75
	NS1505T	1500	390	48	H	N/A	5	1803	528	7.4	13.5	Metallic Micrograin Matt Paint	£334.13
NS1505W	NS1505W	1500	390	48	H	N/A	5	1803	528	7.4	13.5	White RAL 9016	£178.68
	NS1507R	1500	544	48	H	N/A	7	2524	739	10.3	23	Other Solid Matt RAL	£399.22
	NS1507T	1500	544	48	H	N/A	7	2524	739	10.3	23	Metallic Micrograin Matt Paint	£439.15
NS1507W	NS1507W	1500	544	48	H	N/A	7	2524	739	10.3	23	White RAL 9016	£234.84
NS1804G	NS1804GY	1800	313	48	H	N/A	4	1731	507	7.1	15.7	Grey RAL 7015	£179.26
	NS1804R	1800	313	48	H	N/A	4	1731	507	7.1	15.7	Other Solid Matt RAL	£284.80
	NS1804T	1800	313	48	H	N/A	4	1731	507	7.1	15.7	Metallic Micrograin Matt Paint	£313.28
NS1804W	NS1804W	1800	313	48	H	N/A	4	1731	507	7.1	15.7	White RAL 9016	£167.53
NS1805G	NS1805GY	1800	390	48	H	N/A	5	2162	633	8.8	19.3	Grey RAL 7015	£213.40
	NS1805R	1800	390	48	H	N/A	5	2162	633	8.8	19.3	Other Solid Matt RAL	£339.04
	NS1805T	1800	390	48	H	N/A	5	2162	633	8.8	19.3	Metallic Micrograin Matt Paint	£372.95
NS1805W	NS1805W	1800	390	48	H	N/A	5	2162	633	8.8	19.3	White RAL 9016	£199.44
NS1806G	NS1806GY	1800	467	48	H	N/A	6	2595	760	10.6	23.1	Grey RAL 7015	£247.24
	NS1806R	1800	467	48	H	N/A	6	2595	760	10.6	23.1	Other Solid Matt RAL	£392.80
	NS1806T	1800	467	48	H	N/A	6	2595	760	10.6	23.1	Metallic Micrograin Matt Paint	£432.08
NS1806W	NS1806W	1800	467	48	H	N/A	6	2595	760	10.6	23.1	White RAL 9016	£231.06
NS1807G	NS1807GY	1800	544	48	H	N/A	7	3029	887	12.4	26.7	Grey RAL 7015	£280.91
	NS1807R	1800	544	48	H	N/A	7	3029	887	12.4	26.7	Other Solid Matt RAL	£446.30
	NS1807T	1800	544	48	H	N/A	7	3029	887	12.4	26.7	Metallic Micrograin Matt Paint	£490.93
NS1807W	NS1807W	1800	544	48	H	N/A	7	3029	887	12.4	26.7	White RAL 9016	£262.53
NS2004G	NS2004GY	2000	313	48	H	N/A	4	1919	562	7.9	17.4	Grey RAL 7015	£191.51
	NS2004R	2000	313	48	H	N/A	4	1919	562	7.9	17.4	Other Solid Matt RAL	£304.28
	NS2004T	2000	313	48	H	N/A	4	1919	562	7.9	17.4	Metallic Micrograin Matt Paint	£334.71
NS2004W	NS2004W	2000	313	48	H	N/A	4	1919	562	7.9	17.4	White RAL 9016	£178.99

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
