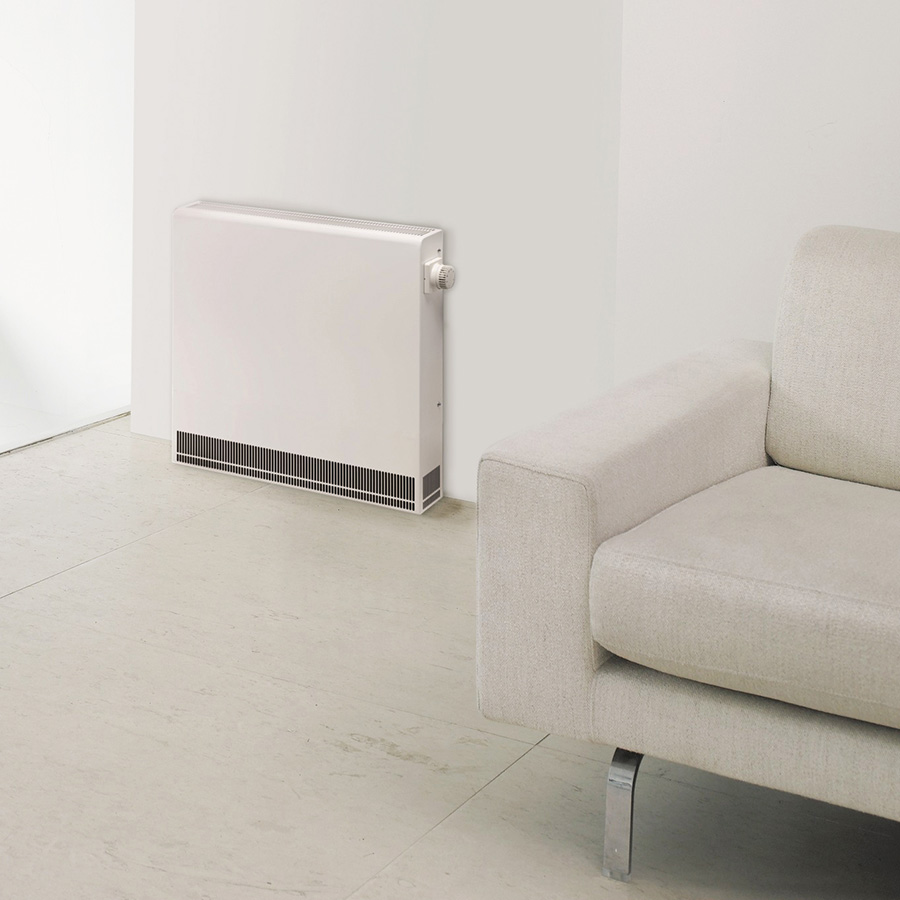

MODEL SHOWN: LSO6D07 (White RAL 9016)

Lsorad

LSORad is a radiator cover that offers an element of safety, without compromising on heat output. The LSO Rad casing sits securely over a Compact 4 radiator offering flexibility for special project requirements.

The details:

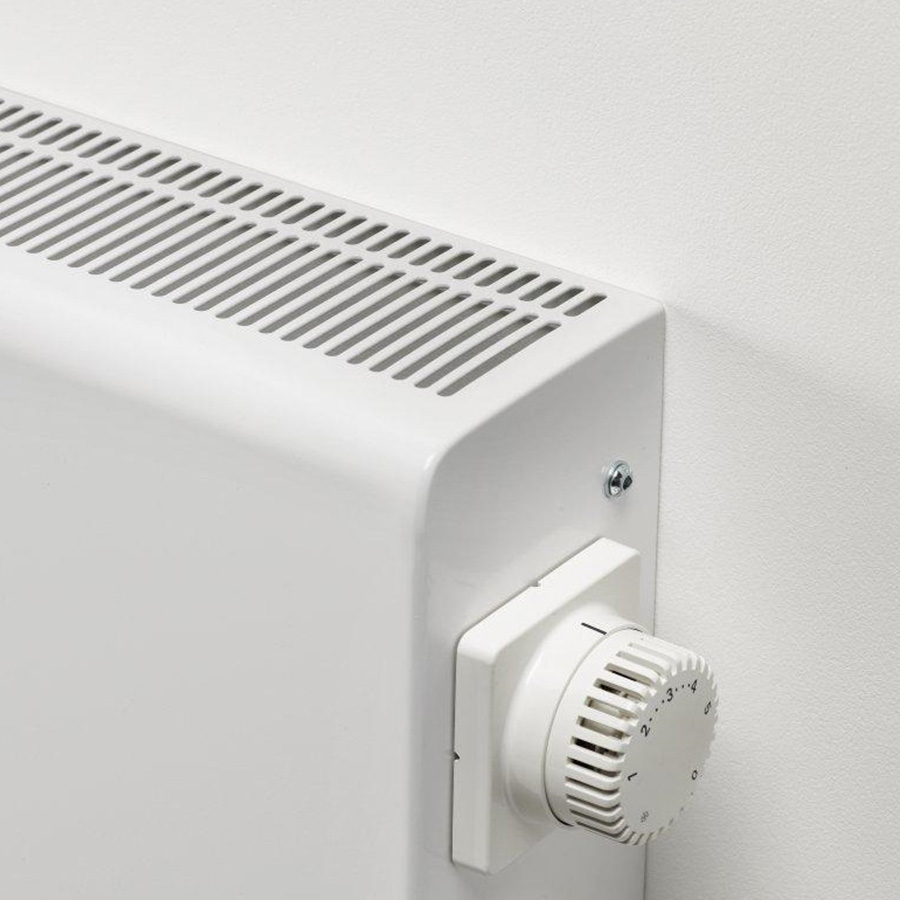

• The TRV valve cut out is fitted to the RH side of the casing, but can be ordered on the LH side if required.
• The Oventrop TRV can be fitted on either the RH or LH side of the radiator, but must be fitted on the flow.
• The capillary wire is 2m long.
• The wide part of the bracket (32mm) should be fixed to the wall to allow sufficient clearance from the front of the emitter.
• 5-Year Warranty
• Available in 47 size options
• Hot water systems only
• High-quality white powder coat finish White RAL 9016
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

SKU: Lsorad Categories: Lsorad, Panel, Range Where to buy

The Range

Max Working Pressure 10 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

MILD STEEL

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
LSO5D07	LSO5D07	700	700	160	H	N/A	N/A	2545	745	5DF500	25.1	White RAL 9016	£382.66
LSO5D10	LSO5D10	700	1000	160	H	N/A	N/A	4069	1191	5DF800	36.2	White RAL 9016	£479.70
LSO5D12	LSO5D12	700	1200	160	H	N/A	N/A	5087	1489	5DF1000	43.6	White RAL 9016	£557.98
LSO5D14	LSO5D14	700	1400	160	H	N/A	N/A	6105	1788	5DF1200	51.1	White RAL 9016	£637.24
LSO5D16	LSO5D16	700	1600	160	H	N/A	N/A	7122	2086	5DF1400	62.9	White RAL 9016	£712.32
LSO5D18	LSO5D18	700	1800	160	H	N/A	N/A	8137	2383	5DF1600	63	White RAL 9016	£743.15
LSO5D20	LSO5D20	700	2000	160	H	N/A	N/A	9155	2681	5DF1800	71.9	White RAL 9016	£778.09
LSO5D22	LSO5D22	700	2200	160	H	N/A	N/A	10173	2979	5DF2000	85.2	White RAL 9016	£860.18
LSO5H07	LSO5H07	700	700	125	H	N/A	N/A	1976	579	5HF500	18.3	White RAL 9016	£379.27
LSO5H10	LSO5H10	700	1000	125	H	N/A	N/A	3161	926	5HF800	27.2	White RAL 9016	£468.07
LSO5H12	LSO5H12	700	1200	125	H	N/A	N/A	3949	1156	5HF1000	33	White RAL 9016	£546.61
LSO5H14	LSO5H14	700	1400	125	H	N/A	N/A	4738	1387	5HF1200	38.8	White RAL 9016	£625.01
LSO5H16	LSO5H16	700	1600	125	H	N/A	N/A	5530	1619	5HF1400	44.7	White RAL 9016	£647.13
LSO5H18	LSO5H18	700	1800	125	H	N/A	N/A	6318	1850	5HF1600	50.8	White RAL 9016	£725.73
LSO5H20	LSO5H20	700	2000	125	H	N/A	N/A	7110	2082	5HF1800	56.5	White RAL 9016	£759.43
LSO5H22	LSO5H22	700	2200	125	H	N/A	N/A	7898	2313	5HF2000	62.3	White RAL 9016	£790.35
LSO6D07	LSO6D07	800	700	160	H	N/A	N/A	2938	860	6DF500	29	White RAL 9016	£418.56
LSO6D10	LSO6D10	800	1000	160	H	N/A	N/A	4697	1375	6DF800	42.2	White RAL 9016	£576.64
LSO6D12	LSO6D12	800	1200	160	H	N/A	N/A	5872	1719	6DF1000	51	White RAL 9016	£609.27
LSO6D14	LSO6D14	800	1400	160	H	N/A	N/A	7047	2064	6DF1200	59.8	White RAL 9016	£659.67
LSO6D16	LSO6D16	800	1600	160	H	N/A	N/A	8222	2408	6DF1400	73.9	White RAL 9016	£741.28
LSO6D18	LSO6D18	800	1800	160	H	N/A	N/A	9394	2751	6DF1600	73.5	White RAL 9016	£793.14
LSO6D20	LSO6D20	800	2000	160	H	N/A	N/A	10569	3095	6DF1800	84.1	White RAL 9016	£834.23
LSO6D22	LSO6D22	800	2200	160	H	N/A	N/A	11744	3439	6DF2000	100.2	White RAL 9016	£918.43
LSO6H07	LSO6H07	800	700	125	H	N/A	N/A	2290	671	6HF500	21.6	White RAL 9016	£413.74
LSO6H10	LSO6H10	800	1000	125	H	N/A	N/A	3663	1073	6HF800	31.9	White RAL 9016	£513.82
LSO6H12	LSO6H12	800	1200	125	H	N/A	N/A	4578	1340	6HF1000	38.8	White RAL 9016	£591.91
LSO6H14	LSO6H14	800	1400	125	H	N/A	N/A	5492	1608	6HF1200	45	White RAL 9016	£644.21
LSO6H16	LSO6H16	800	1600	125	H	N/A	N/A	6409	1877	6HF1400	52.7	White RAL 9016	£685.56
LSO6H18	LSO6H18	800	1800	125	H	N/A	N/A	7324	2145	6HF1600	59.8	White RAL 9016	£767.54
LSO6H20	LSO6H20	800	2000	125	H	N/A	N/A	8241	2413	6HF1800	65.6	White RAL 9016	£803.21
LSO6H22	LSO6H22	800	2200	125	H	N/A	N/A	9155	2681	6HF2000	73.5	White RAL 9016	£838.19
LSO7D07	LSO7D07	900	700	160	H	N/A	N/A	3299	966	7DF500	33.2	White RAL 9016	£484.99
LSO7D10	LSO7D10	900	1000	160	H	N/A	N/A	5278	1546	7DF800	48.5	White RAL 9016	£577.15
LSO7D12	LSO7D12	900	1200	160	H	N/A	N/A	6598	1932	7DF1000	58.8	White RAL 9016	£666.48
LSO7D14	LSO7D14	900	1400	160	H	N/A	N/A	7917	2318	7DF1200	69	White RAL 9016	£712.26
LSO7D16	LSO7D16	900	1600	160	H	N/A	N/A	9237	2705	7DF1400	85.7	White RAL 9016	£823.05
LSO7D18	LSO7D18	900	1800	160	H	N/A	N/A	10556	3091	7DF1600	85.3	White RAL 9016	£863.38
LSO7D20	LSO7D20	900	2000	160	H	N/A	N/A	11876	3478	7DF1800	97.5	White RAL 9016	£921.03
LSO7D22	LSO7D22	900	2200	160	H	N/A	N/A	13196	3864	7DF2000	116.4	White RAL 9016	£1,016.26
LSO7H07	LSO7H07	900	700	125	H	N/A	N/A	2589	758	7HF500	25.2	White RAL 9016	£475.23
LSO7H10	LSO7H10	900	1000	125	H	N/A	N/A	4141	1213	7HF800	37.5	White RAL 9016	£559.75
LSO7H12	LSO7H12	900	1200	125	H	N/A	N/A	5175	1515	7HF1000	45.7	White RAL 9016	£596.06
LSO7H14	LSO7H14	900	1400	125	H	N/A	N/A	6208	1818	7HF1200	53.9	White RAL 9016	£692.37
LSO7H16	LSO7H16	900	1600	125	H	N/A	N/A	7245	2122	7HF1400	62.2	White RAL 9016	£743.56
LSO7H18	LSO7H18	900	1800	125	H	N/A	N/A	8279	2424	7HF1600	70.6	White RAL 9016	£834.64
LSO7H20	LSO7H20	900	2000	125	H	N/A	N/A	9315	2728	7HF1800	78.7	White RAL 9016	£889.07

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
