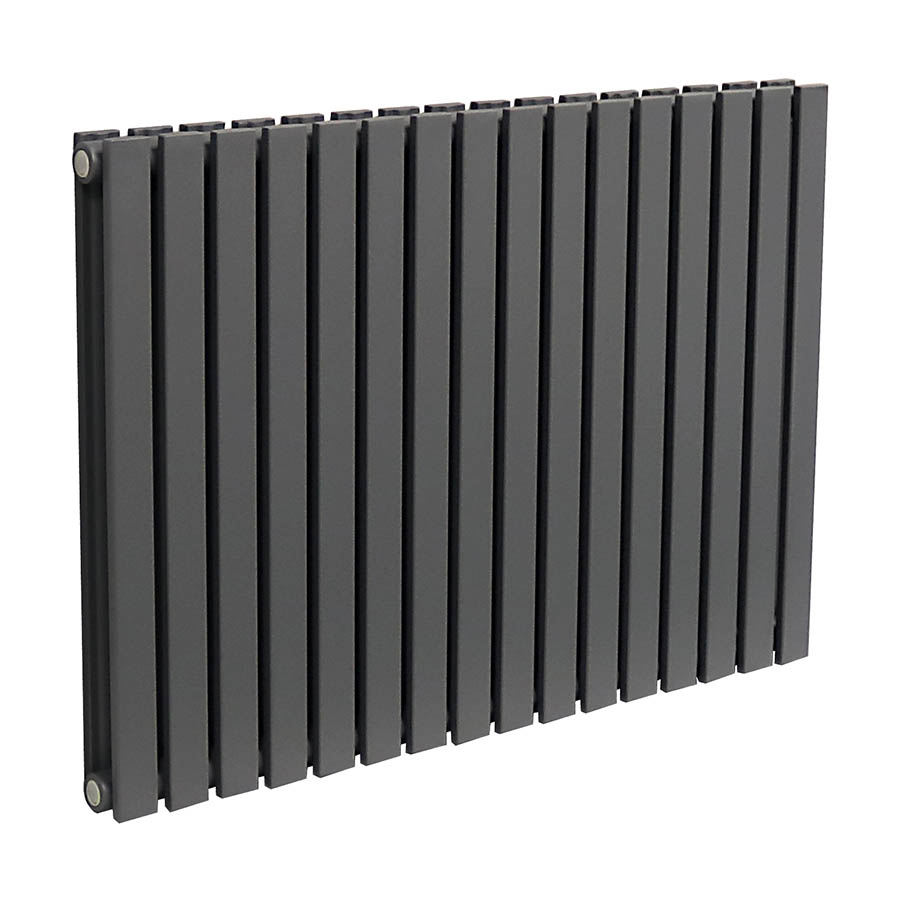

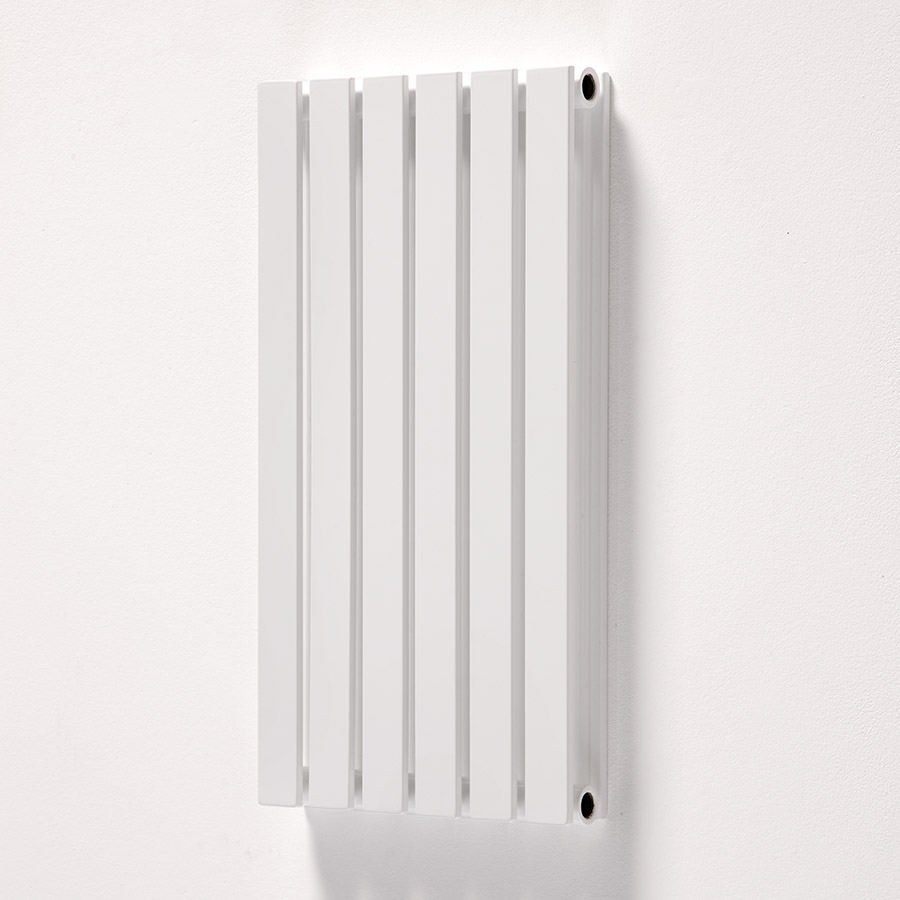

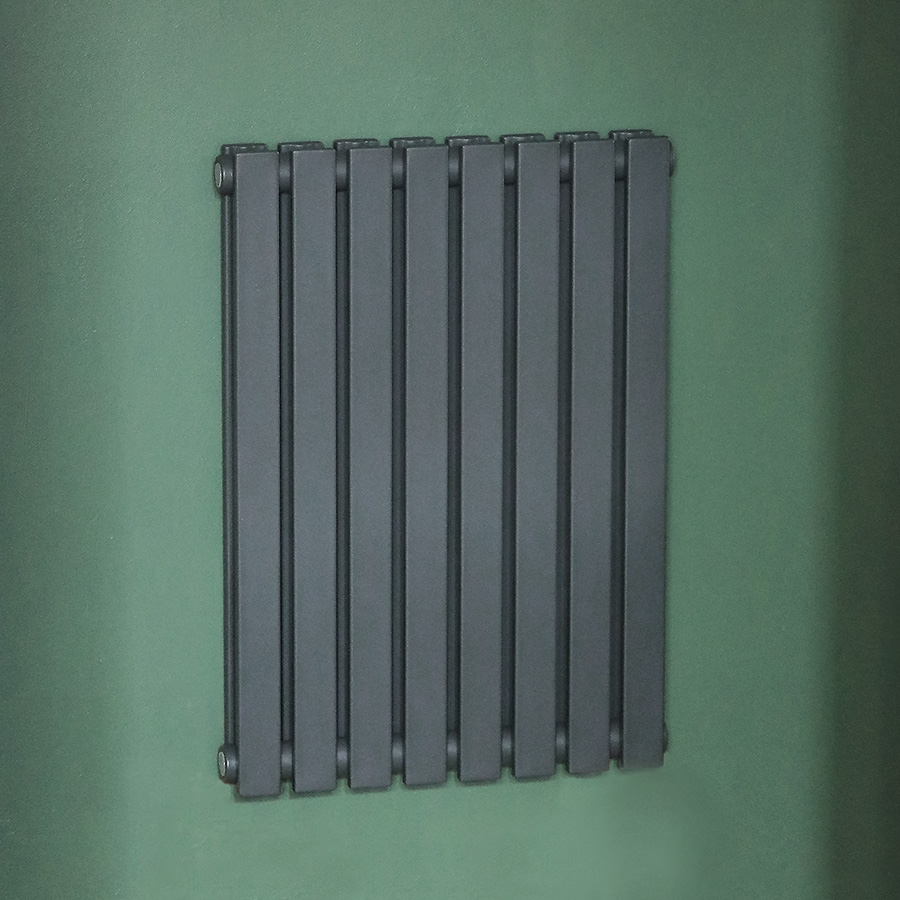

Linear Horizontal

The Linear radiator is a clean contemporary design that would complement any style of room, whether traditional or modern. The Linear radiators come in a horizontal and vertical design.

The details:
• 5-Year Warranty
• Available in 13 size options
• Available in White RAL 9016, Metallic Micrograin Black RAL 9004 & Grey RAL 7015, or choose your own RAL colour
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 1-0 weeks for delivery for your own RAL choice
• All prices are exclusive of VAT and delivery

SKU: Linear Horizontal Categories: Linear Horizontal, Range, Tubular Where to buy

The Range

Max Working Pressure 6 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
	LD606R	600	321	61	H	N/A	12	1476	432	3.2	11.1	Other Solid Matt RAL	£271.51
	LD606T	600	321	61	H	N/A	12	1476	432	3.2	11.1	Metallic Micrograin Matt Paint	£298.67
LD606W	LD606W	600	321	61	H	N/A	12	1476	432	3.2	11.1	White RAL 9016	£164.55
LD608B	LD608B	600	427	61	H	N/A	16	1967	576	4.3	14.4	Metallic Micrograin Black RAL 9004	£284.23
LD608G	LD608GY	600	427	61	H	N/A	16	2466	722	4.3	14.4	Grey RAL 7015	£284.23
	LD608R	600	427	61	H	N/A	16	1967	576	4.3	14.4	Other Solid Matt RAL	£362.02
	LD608T	600	427	61	H	N/A	16	1967	576	4.3	14.4	Metallic Micrograin Matt Paint	£398.22
LD608W	LD608W	600	427	61	H	N/A	16	1967	576	4.3	14.4	White RAL 9016	£219.41
	LD610R	600	533	61	H	N/A	20	2459	720	5.4	17.8	Other Solid Matt RAL	£421.84
	LD610T	600	533	61	H	N/A	20	2459	720	5.4	17.8	Metallic Micrograin Matt Paint	£464.03
LD610W	LD610W	600	533	61	H	N/A	20	2459	720	5.4	17.8	White RAL 9016	£255.66
LD612B	LD612B	600	639	61	H	N/A	24	2951	864	6.5	21.1	Metallic Micrograin Black RAL 9004	£381.78
LD612G	LD612GY	600	639	61	H	N/A	24	3698	1083	6.5	21.1	Grey RAL 7015	£381.78
	LD612R	600	639	61	H	N/A	24	2951	864	6.5	21.1	Other Solid Matt RAL	£486.27
	LD612T	600	639	61	H	N/A	24	2951	864	6.5	21.1	Metallic Micrograin Matt Paint	£534.90
LD612W	LD612W	600	639	61	H	N/A	24	2951	864	6.5	21.1	White RAL 9016	£294.71
	LD614R	600	745	61	H	N/A	28	3443	1008	7.6	24.4	Other Solid Matt RAL	£552.23
	LD614T	600	745	61	H	N/A	28	3443	1008	7.6	24.4	Metallic Micrograin Matt Paint	£607.46
LD614W	LD614W	600	745	61	H	N/A	28	3443	1008	7.6	24.4	White RAL 9016	£334.69
LD616B	LD616B	600	851	61	H	N/A	32	3935	1152	8.6	27.8	Metallic Micrograin Black RAL 9004	£472.11
LD616G	LD616GY	600	851	61	H	N/A	32	4931	1444	8.6	27.8	Grey RAL 7015	£472.11
	LD616R	600	851	61	H	N/A	32	3935	1152	8.6	27.8	Other Solid Matt RAL	£601.32
	LD616T	600	851	61	H	N/A	32	3935	1152	8.6	27.8	Metallic Micrograin Matt Paint	£661.45
LD616W	LD616W	600	851	61	H	N/A	32	3935	1152	8.6	27.8	White RAL 9016	£364.44
LD618B	LD618B	600	957	61	H	N/A	36	4427	1296	9.7	31.1	Metallic Micrograin Black RAL 9004	£537.34
LD618G	LD618GY	600	957	61	H	N/A	36	5547	1624	9.7	31.1	Grey RAL 7015	£537.34
	LD618R	600	957	61	H	N/A	36	4427	1296	9.7	31.1	Other Solid Matt RAL	£684.39
	LD618T	600	957	61	H	N/A	36	4427	1296	9.7	31.1	Metallic Micrograin Matt Paint	£752.82
LD618W	LD618W	600	957	61	H	N/A	36	4427	1296	9.7	31.1	White RAL 9016	£414.78
LD620B	LD620B	600	1063	61	H	N/A	40	4918	1440	10.8	34.5	Metallic Micrograin Black RAL 9004	£588.93
LD620G	LD620GY	600	1063	61	H	N/A	40	6164	1805	10.8	34.5	Grey RAL 7015	£588.93
	LD620R	600	1063	61	H	N/A	40	4918	1440	10.8	34.5	Other Solid Matt RAL	£750.12
	LD620T	600	1063	61	H	N/A	40	4918	1440	10.8	34.5	Metallic Micrograin Matt Paint	£825.13
LD620W	LD620W	600	1063	61	H	N/A	40	4918	1440	10.8	34.5	White RAL 9016	£454.62
LD623B	LD623B	600	1222	61	H	N/A	46	5656	1656	12.4	39.5	Metallic Micrograin Black RAL 9004	£685.56
LD623G	LD623GY	600	1222	61	H	N/A	46	7088	2075	12.4	39.5	Grey RAL 7015	£685.56
	LD623R	600	1222	61	H	N/A	46	5656	1656	12.4	39.5	Other Solid Matt RAL	£873.19
	LD623T	600	1222	61	H	N/A	46	5656	1656	12.4	39.5	Metallic Micrograin Matt Paint	£960.51
LD623W	LD623W	600	1222	61	H	N/A	46	5656	1656	12.4	39.5	White RAL 9016	£529.20
	LD627R	600	1434	61	H	N/A	54	6640	1944	14.6	46.2	Other Solid Matt RAL	£1,037.20
	LD627T	600	1434	61	H	N/A	54	6640	1944	14.6	46.2	Metallic Micrograin Matt Paint	£1,140.92
LD627W	LD627W	600	1434	61	H	N/A	54	6640	1944	14.6	46.2	White RAL 9016	£628.61
	LD631R	600	1646	61	H	N/A	62	7624	2232	16.7	52.8	Other Solid Matt RAL	£1,191.90
	LD631T	600	1646	61	H	N/A	62	7624	2232	16.7	52.8	Metallic Micrograin Matt Paint	£1,311.09
LD631W	LD631W	600	1646	61	H	N/A	62	7624	2232	16.7	52.8	White RAL 9016	£722.36
	LD635R	600	1858	61	H	N/A	70	8607	2520	18.9	59.5	Other Solid Matt RAL	£1,352.97
	LD635T	600	1858	61	H	N/A	70	8607	2520	18.9	59.5	Metallic Micrograin Matt Paint	£1,488.27
LD635W	LD635W	600	1858	61	H	N/A	70	8607	2520	18.9	59.5	White RAL 9016	£819.98
	LD638R	600	2017	61	H	N/A	76	9345	2736	20.5	64.5	Other Solid Matt RAL	£1,471.09
	LD638T	600	2017	61	H	N/A	76	9345	2736	20.5	64.5	Metallic Micrograin Matt Paint	£1,618.19
LD638W	LD638W	600	2017	61	H	N/A	76	9345	2736	20.5	64.5	White RAL 9016	£891.57

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
