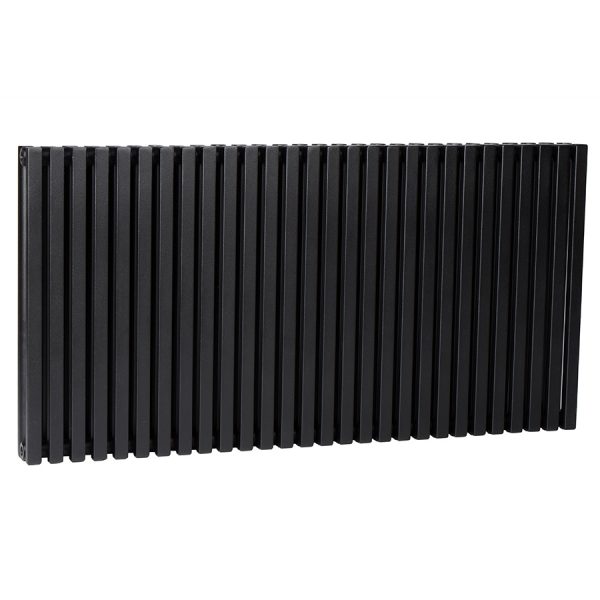

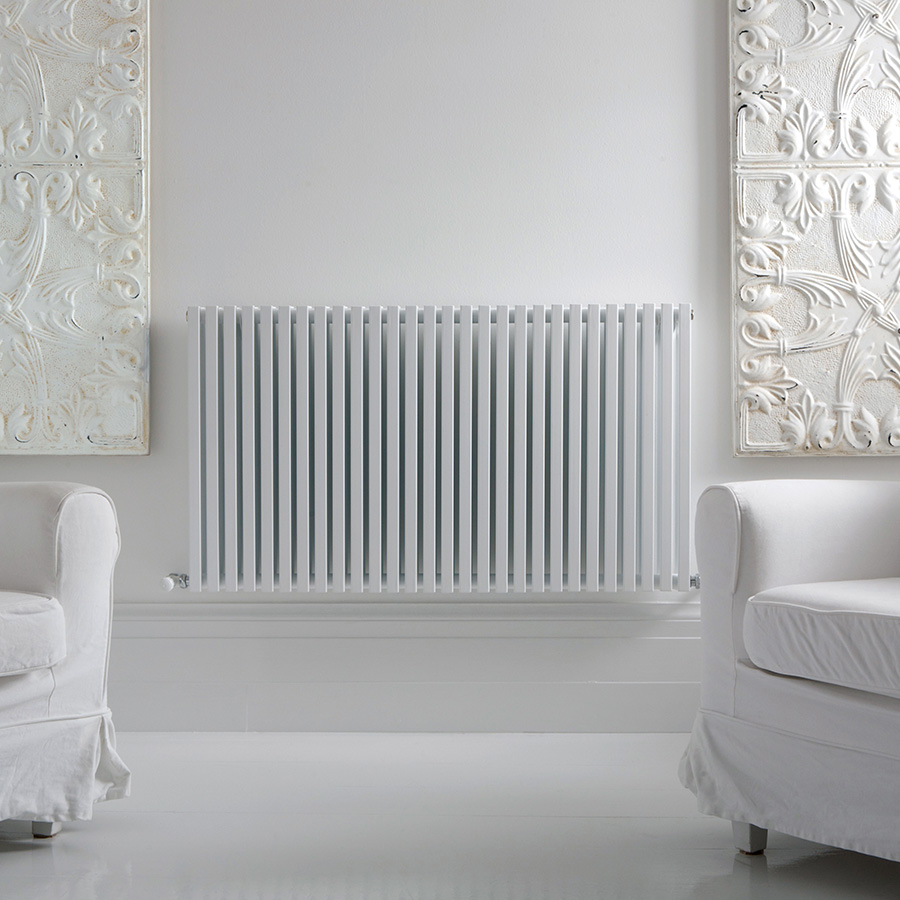

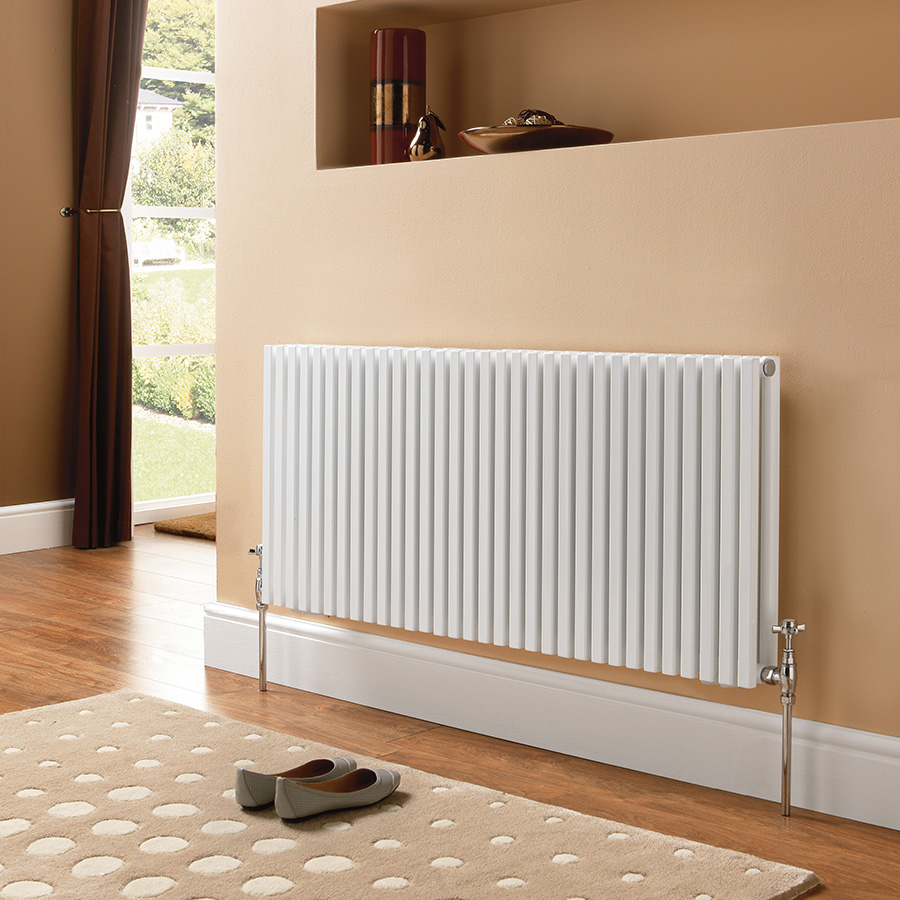

MODEL SHOWN: KD628W (White RAL 9016)

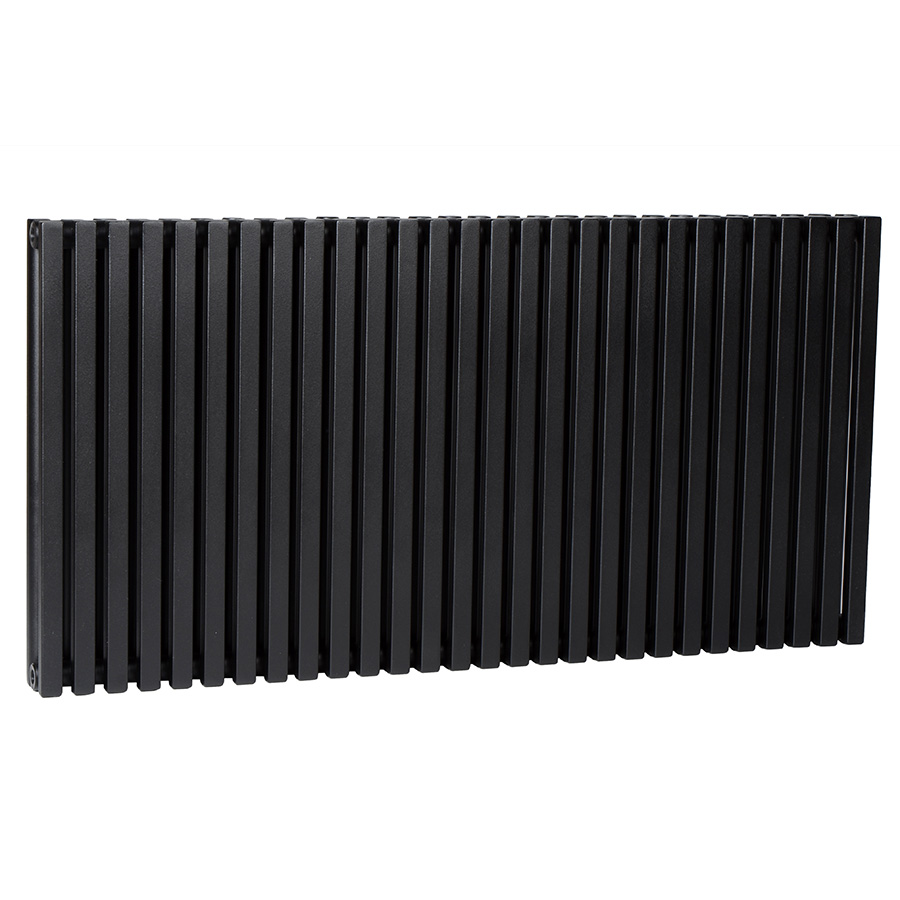

MODEL SHOWN: KD628B (Metallic Micrograin Black RAL 9004)

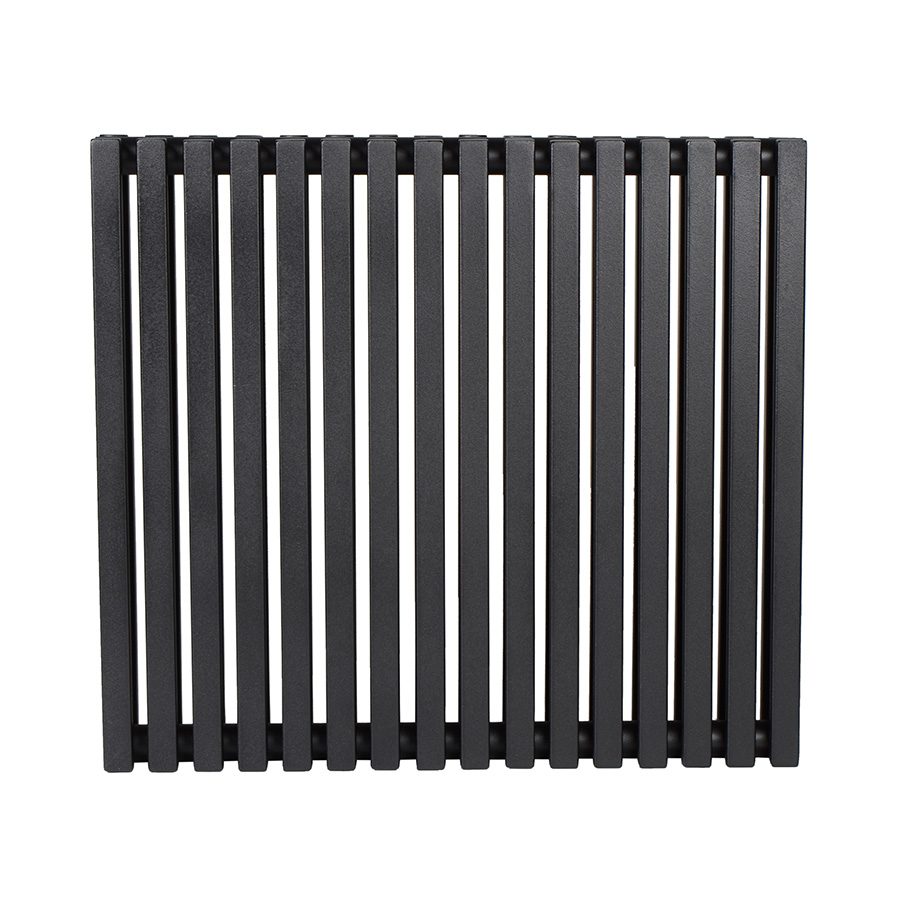

MODEL SHOWN: KD416B (Metallic Micrograin Black RAL 9004)

MODEL SHOWN: Klon (White RAL 9016)

Klon Horizontal

The Klon is similar to a traditional radiator in design, the mild steel D-shaped tubes provide a slender profile that deliver high heat output. The Klon radiators come in a horizontal and vertical design.

The details:
• 5-Year Warranty
• Available in 12 size options
• Available in White RAL 9016, Metallic Micrograin Black RAL 9004 and Grey RAL 7015
• We recommend pipework is not installed until receipt of radiator
• All prices are exclusive of VAT and delivery

SKU: Klon Horizontal Categories: Klon Horizontal, Range, Tubular Where to buy

The Range

Max Working Pressure 6 Bars

95 DEGREES MAX WORKING TEMP.

Closed System

Mild Steel

VERTICAL MOUNTING

5 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
KD416B	KD416B	420	611	87	H	N/A	32	2623	768	6.5	19.5	Metallic Micrograin Black RAL 9004	£273.34
KD416G	KD416GY	420	611	87	H	N/A	32	2623	768	6.5	19.5	Grey RAL 7015	£273.34
	KD416R	420	611	87	H	N/A	32	2623	768	6.5	19.5	Other Solid Matt RAL	£378.84
	KD416T	420	611	87	H	N/A	32	2623	768	6.5	19.5	Metallic Micrograin Matt Paint	£416.72
KD416W	KD416W	420	611	87	H	N/A	32	2623	768	6.5	19.5	White RAL 9016	£239.77
KD422B	KD422B	420	839	87	H	N/A	44	3607	1056	9.3	26.5	Metallic Micrograin Black RAL 9004	£365.98
KD422G	KD422GY	420	839	87	H	N/A	44	3607	1056	9.3	26.5	Grey RAL 7015	£365.98
	KD422R	420	839	87	H	N/A	44	3607	1056	9.3	26.5	Other Solid Matt RAL	£507.24
	KD422T	420	839	87	H	N/A	44	3607	1056	9.3	26.5	Metallic Micrograin Matt Paint	£557.96
KD422W	KD422W	420	839	87	H	N/A	44	3607	1056	9.3	26.5	White RAL 9016	£321.04
KD428B	KD428B	420	1067	87	H	N/A	56	4591	1344	12.1	33.4	Metallic Micrograin Black RAL 9004	£461.37
KD428G	KD428GY	420	1067	87	H	N/A	56	4591	1344	12.1	33.4	Grey RAL 7015	£461.37
	KD428R	420	1067	87	H	N/A	56	4591	1344	12.1	33.4	Other Solid Matt RAL	£639.45
	KD428T	420	1067	87	H	N/A	56	4591	1344	12.1	33.4	Metallic Micrograin Matt Paint	£703.39
KD428W	KD428W	420	1067	87	H	N/A	56	4591	1344	12.1	33.4	White RAL 9016	£404.71
KD432B	KD432B	420	1219	87	H	N/A	64	5246	1536	13.9	38	Metallic Micrograin Black RAL 9004	£527.42
KD432G	KD432GY	420	1219	87	H	N/A	64	5246	1536	13.9	38	Grey RAL 7015	£527.42
	KD432R	420	1219	87	H	N/A	64	5246	1536	13.9	38	Other Solid Matt RAL	£730.98
	KD432T	420	1219	87	H	N/A	64	5246	1536	13.9	38	Metallic Micrograin Matt Paint	£804.08
KD432W	KD432W	420	1219	87	H	N/A	64	5246	1536	13.9	38	White RAL 9016	£462.64
KD436B	KD436B	420	1371	87	H	N/A	72	5902	1728	15.8	42.7	Metallic Micrograin Black RAL 9004	£595.29
KD436G	KD436GY	420	1371	87	H	N/A	72	5902	1728	15.8	42.7	Grey RAL 7015	£595.29
	KD436R	420	1371	87	H	N/A	72	5902	1728	15.8	42.7	Other Solid Matt RAL	£825.05
	KD436T	420	1371	87	H	N/A	72	5902	1728	15.8	42.7	Metallic Micrograin Matt Paint	£907.56
KD436W	KD436W	420	1371	87	H	N/A	72	5902	1728	15.8	42.7	White RAL 9016	£522.19
KD614G	KD614GY	600	535	87	H	N/A	28	3200	937	7.7	23.3	Grey RAL 7015	£276.34
	KD614R	600	535	87	H	N/A	28	3200	937	7.7	23.3	Other Solid Matt RAL	£401.72
	KD614T	600	535	87	H	N/A	28	3200	937	7.7	23.3	Metallic Micrograin Matt Paint	£441.89
KD614W	KD614W	600	535	87	H	N/A	28	3200	937	7.7	23.3	White RAL 9016	£254.25
KD616B	KD616B	600	611	87	H	N/A	32	3658	1071	9	26.5	Metallic Micrograin Black RAL 9004	£332.96
KD616G	KD616GY	600	611	87	H	N/A	32	3658	1071	9	26.5	Grey RAL 7015	£370.67
	KD616R	600	611	87	H	N/A	32	3658	1071	9	26.5	Other Solid Matt RAL	£461.47
	KD616T	600	611	87	H	N/A	32	3658	1071	9	26.5	Metallic Micrograin Matt Paint	£507.62
KD616W	KD616W	600	611	87	H	N/A	32	3658	1071	9	26.5	White RAL 9016	£292.07
KD622B	KD622B	600	839	87	H	N/A	44	5031	1473	12.8	36	Metallic Micrograin Black RAL 9004	£452.20
KD622G	KD622GY	600	839	87	H	N/A	44	5031	1473	12.8	36	Grey RAL 7015	£470.52
	KD622R	600	839	87	H	N/A	44	5031	1473	12.8	36	Other Solid Matt RAL	£626.73
	KD622T	600	839	87	H	N/A	44	5031	1473	12.8	36	Metallic Micrograin Matt Paint	£689.41
KD622W	KD622W	600	839	87	H	N/A	44	5031	1473	12.8	36	White RAL 9016	£396.67
KD628B	KD628B	600	1067	87	H	N/A	56	6408	1876	16.7	45.5	Metallic Micrograin Black RAL 9004	£570.53
KD628G	KD628GY	600	1067	87	H	N/A	56	6408	1876	16.7	45.5	Grey RAL 7015	£570.53
	KD628R	600	1067	87	H	N/A	56	6408	1876	16.7	45.5	Other Solid Matt RAL	£790.73
	KD628T	600	1067	87	H	N/A	56	6408	1876	16.7	45.5	Metallic Micrograin Matt Paint	£869.80
KD628W	KD628W	600	1067	87	H	N/A	56	6408	1876	16.7	45.5	White RAL 9016	£500.46
KD632B	KD632B	600	1219	87	H	N/A	64	7323	2144	19.2	51.9	Metallic Micrograin Black RAL 9004	£644.82
KD632G	KD632GY	600	1219	87	H	N/A	64	7323	2144	19.2	51.9	Grey RAL 7015	£644.82
	KD632R	600	1219	87	H	N/A	64	7323	2144	19.2	51.9	Other Solid Matt RAL	£893.70
	KD632T	600	1219	87	H	N/A	64	7323	2144	19.2	51.9	Metallic Micrograin Matt Paint	£983.07
KD632W	KD632W	600	1219	87	H	N/A	64	7323	2144	19.2	51.9	White RAL 9016	£565.63
KD636B	KD636B	600	1371	87	H	N/A	72	8238	2412	21.8	58.2	Metallic Micrograin Black RAL 9004	£775.07
KD636G	KD636GY	600	1371	87	H	N/A	72	8238	2412	21.8	58.2	Grey RAL 7015	£775.07
	KD636R	600	1371	87	H	N/A	72	8238	2412	21.8	58.2	Other Solid Matt RAL	£1,074.22
	KD636T	600	1371	87	H	N/A	72	8238	2412	21.8	58.2	Metallic Micrograin Matt Paint	£1,181.64
KD636W	KD636W	600	1371	87	H	N/A	72	8238	2412	21.8	58.2	White RAL 9016	£679.89
	KD642R	600	1599	87	H	N/A	84	9611	2814	25.6	67.7	Other Solid Matt RAL	£1,256.46
	KD642T	600	1599	87	H	N/A	84	9611	2814	25.6	67.7	Metallic Micrograin Matt Paint	£1,390.08
KD642W	KD642W	600	1599	87	H	N/A	84	9611	2814	25.6	67.7	White RAL 9016	£785.29

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
