MODEL SHOWN: 5PHSP (Polished rail with White RAL 9016 Planal)
MODEL SHOWN: 5HHP (Polished rail with White RAL 9016 Compact 4)

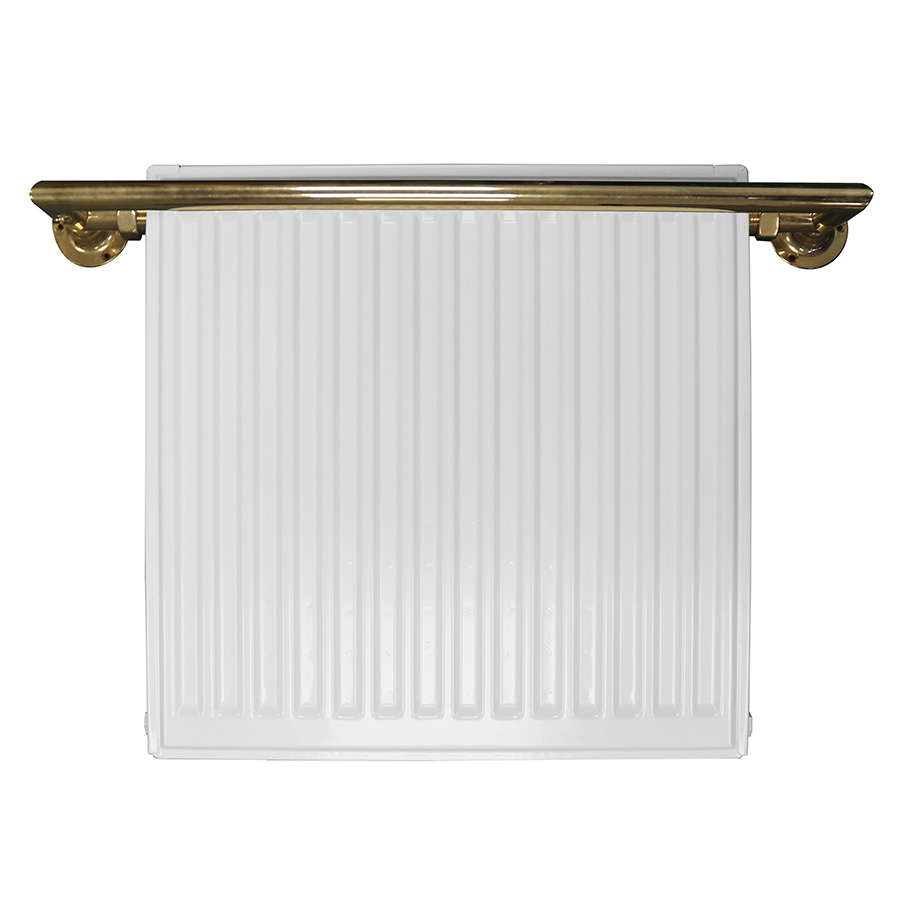

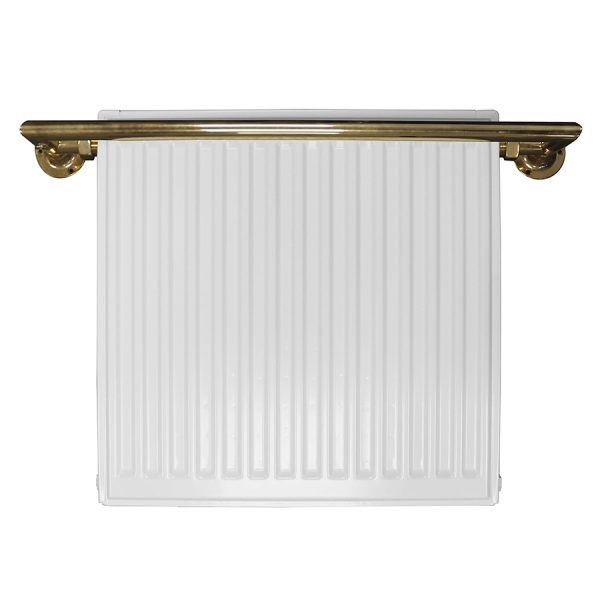

MODEL SHOWN: 5HHGP (Gold Polished Mitred Brass Rail with White RAL 9016 Compact 4)

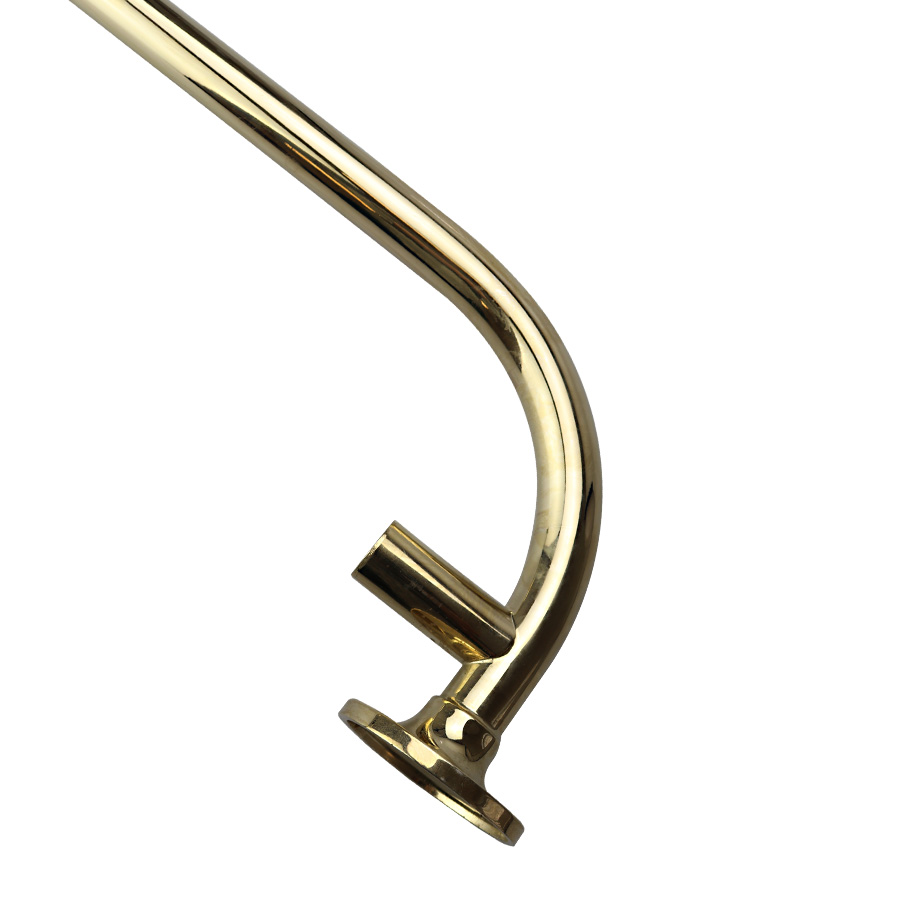

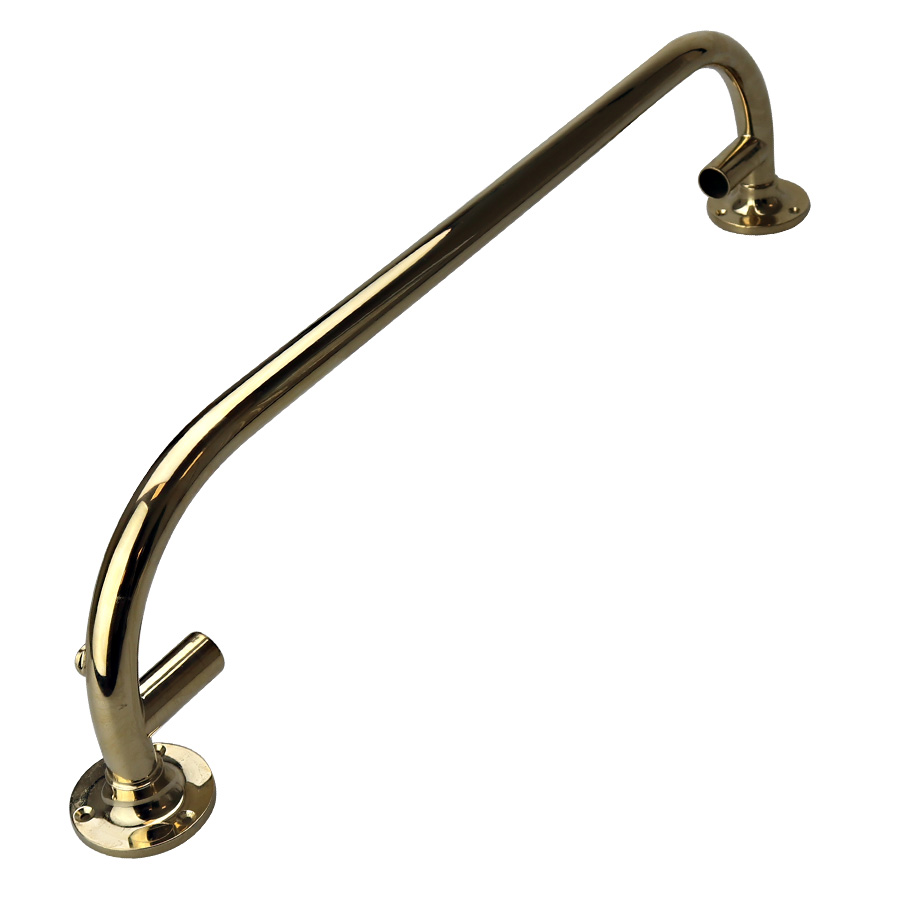

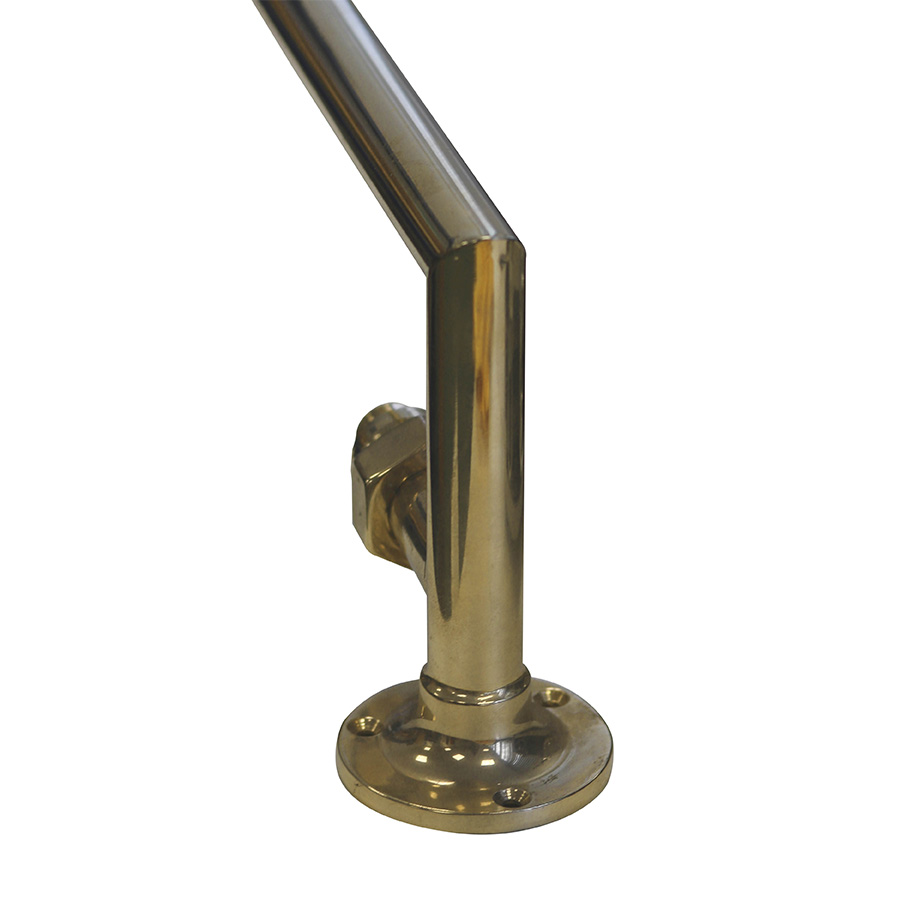

FINISH SHOWN: Gold Polished Mitred Brass Rail
FINISH SHOWN: Gold Polished Curved Stainless Steel Rail
FINISH SHOWN: Gold Polished Curved Stainless Steel Rail Hampton
The Hampton is a combination of the most popular Ultraheat steel panel convector radiator with a sleek top rail that brings style and warmth to your bathroom. You can select a Compact 4 or a Planal radiator and choose the top rails in various colours and finishes.
The details
• 5-Year Warranty
• Available in 10 size options
• High-quality white powder coat finish White RAL 9016 radiator with the top rails available in Brushed Matt, Polished and Gold Polished
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery
The Range
| SAP CODE | PRODUCT NAME | HEIGHT (mm) | LENGTH (mm) | DEPTH(mm) | FUEL OPTIONS | TOWEL GAPS | PIPES/SECTIONS | HEAT OUTPUT (BTU) | HEAT OUTPUT (WATTS) | WATER CONTENT (L) | GROSS WEIGHT (KG) | FINISH | RRP | TECHNICAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4HHGP | 4HHGP | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 12.3 | Gold Polished | £189.53 | |
| 4HHP | 4HHP | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 12.3 | Polished | £193.54 | |
| 4HHS | 4HHS | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 12.3 | Brushed Matt | £176.25 | |
| 4HSGP | 4HSGP | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 8.1 | Gold Polished | £169.87 | |
| 4HSP | 4HSP | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 8.1 | Polished | £170.92 | |
| 4HSS | 4HSS | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 8.1 | Brushed Matt | £153.63 | |
| 4PHHGP | 4PHHGP | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 13.9 | Gold Polished | £253.30 | |
| 4PHHP | 4PHHP | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 13.9 | Polished | £236.01 | |
| 4PHHS | 4PHHS | 400 | 734 | 200 | H | 1 | 30 | 1928 | 565 | 2.3 | 13.9 | Brushed Matt | £218.72 | |
| 4PHSGP | 4PHSGP | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 9.5 | Gold Polished | £227.93 | |
| 4PHSP | 4PHSP | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 9.5 | Polished | £210.64 | |
| 4PHSS | 4PHSS | 400 | 734 | 200 | H | 1 | 15 | 1341 | 393 | 1.4 | 9.5 | Brushed Matt | £193.34 | |
| 5HHGP | 5HHGP | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 14.7 | Gold Polished | £198.82 | |
| 5HHP | 5HHP | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 14.7 | Polished | £204.22 | |
| 5HHS | 5HHS | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 14.7 | Brushed Matt | £186.92 | |
| 5HSGP | 5HSGP | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 9.5 | Gold Polished | £177.66 | |
| 5HSP | 5HSP | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 9.5 | Polished | £179.89 | |
| 5HSS | 5HSS | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 9.5 | Brushed Matt | £162.60 | |
| 5PHHGP | 5PHHGP | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 16.7 | Gold Polished | £273.91 | |
| 5PHHP | 5PHHP | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 16.7 | Polished | £256.62 | |
| 5PHHS | 5PHHS | 500 | 734 | 200 | H | 1 | 30 | 2293 | 672 | 3.2 | 16.7 | Brushed Matt | £239.33 | |
| 5PHSGP | 5PHSGP | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 11.3 | Gold Polished | £243.07 | |
| 5PHSP | 5PHSP | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 11.3 | Polished | £225.78 | |
| 5PHSS | 5PHSS | 500 | 734 | 200 | H | 1 | 15 | 1570 | 460 | 1.9 | 11.3 | Brushed Matt | £208.49 | |
| 6HHGP | 6HHGP | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 17.5 | Gold Polished | £207.96 | |
| 6HHP | 6HHP | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 17.5 | Polished | £214.72 | |
| 6HHS | 6HHS | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 17.5 | Brushed Matt | £197.43 | |
| 6HSGP | 6HSGP | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 11.1 | Gold Polished | £183.23 | |
| 6HSP | 6HSP | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 11.1 | Polished | £186.29 | |
| 6HSS | 6HSS | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 11.1 | Brushed Matt | £168.99 | |
| 6PHHGP | 6PHHGP | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 20 | Gold Polished | £293.77 | |
| 6PHHP | 6PHHP | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 20 | Polished | £276.48 | |
| 6PHHS | 6PHHS | 600 | 734 | 200 | H | 1 | 30 | 2620 | 768 | 4.1 | 20 | Brushed Matt | £259.19 | |
| 6PHSGP | 6PHSGP | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 13.5 | Gold Polished | £249.03 | |
| 6PHSP | 6PHSP | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 13.5 | Polished | £231.74 | |
| 6PHSS | 6PHSS | 600 | 734 | 200 | H | 1 | 15 | 1784 | 523 | 2.5 | 13.5 | Brushed Matt | £214.45 | |
| 7HHGP | 7HHGP | 700 | 734 | 200 | H | 1 | 30 | 2934 | 860 | 5.3 | 19.1 | Gold Polished | £224.74 | |
| 7HHP | 7HHP | 700 | 734 | 200 | H | 1 | 30 | 2934 | 860 | 5.3 | 19.1 | Polished | £234.03 | |
| 7HHS | 7HHS | 700 | 734 | 200 | H | 1 | 30 | 2934 | 860 | 5.3 | 19.1 | Brushed Matt | £216.73 | |
| 7HSGP | 7HSGP | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 12.2 | Gold Polished | £189.09 | |
| 7HSP | 7HSP | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 12.2 | Polished | £193.02 | |
| 7HSS | 7HSS | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 12.2 | Brushed Matt | £175.73 | |
| 7PHSGP | 7PHSGP | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 14.9 | Gold Polished | £269.14 | |
| 7PHSP | 7PHSP | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 14.9 | Polished | £251.85 | |
| 7PHSS | 7PHSS | 700 | 734 | 200 | H | 1 | 15 | 1996 | 585 | 3.1 | 14.9 | Brushed Matt | £234.56 | |
| 9HHGP | 9HHGP | 900 | 734 | 200 | H | 1 | 30 | 3542 | 1038 | 7.5 | 24 | Gold Polished | £251.90 | |
| 9HHP | 9HHP | 900 | 734 | 200 | H | 1 | 30 | 3542 | 1038 | 7.5 | 24 | Polished | £265.26 | |
| 9HHS | 9HHS | 900 | 734 | 200 | H | 1 | 30 | 3542 | 1038 | 7.5 | 24 | Brushed Matt | £247.97 | |
| 9HSGP | 9HSGP | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 15 | Gold Polished | £212.87 | |
| 9HSP | 9HSP | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 15 | Polished | £220.38 | |
| 9HSS | 9HSS | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 15 | Brushed Matt | £203.09 | |
| 9PHSGP | 9PHSGP | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 18.5 | Gold Polished | £302.91 | |
| 9PHSP | 9PHSP | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 18.5 | Polished | £285.62 | |
| 9PHSS | 9PHSS | 900 | 734 | 200 | H | 1 | 15 | 2405 | 705 | 4.4 | 18.5 | Brushed Matt | £268.33 |
When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
