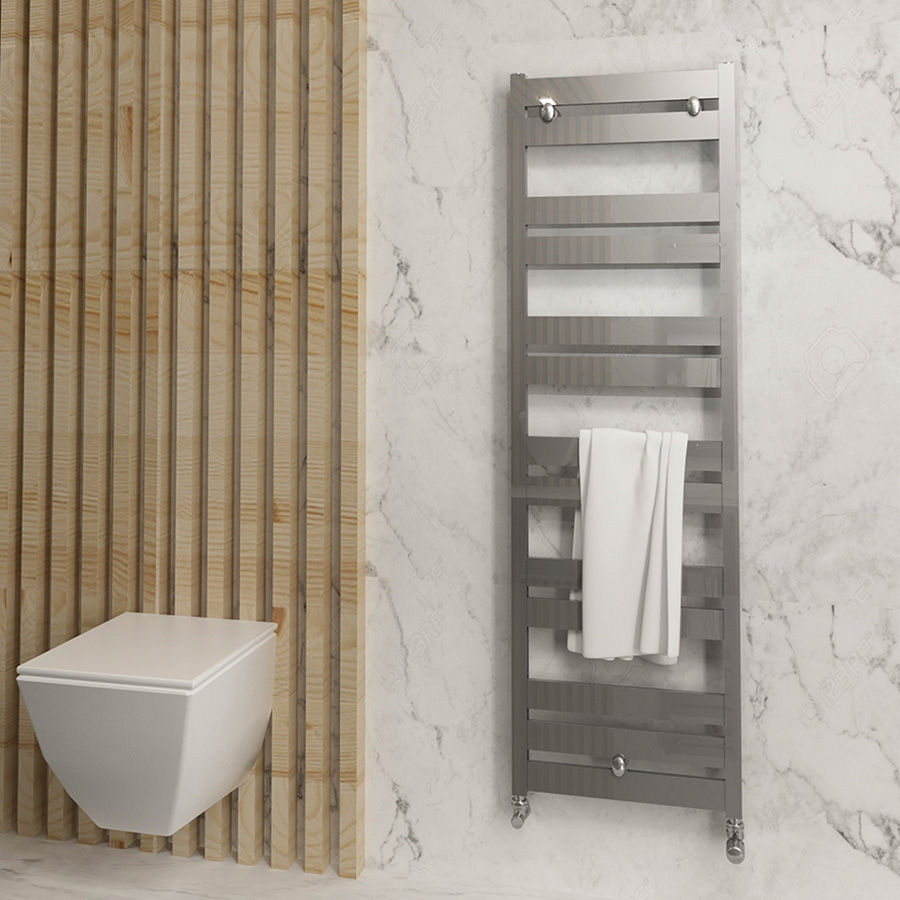

FINISH SHOWN: Matt Anodised - MODEL SHOWN FOR ILLUSTRATION PURPOSES.

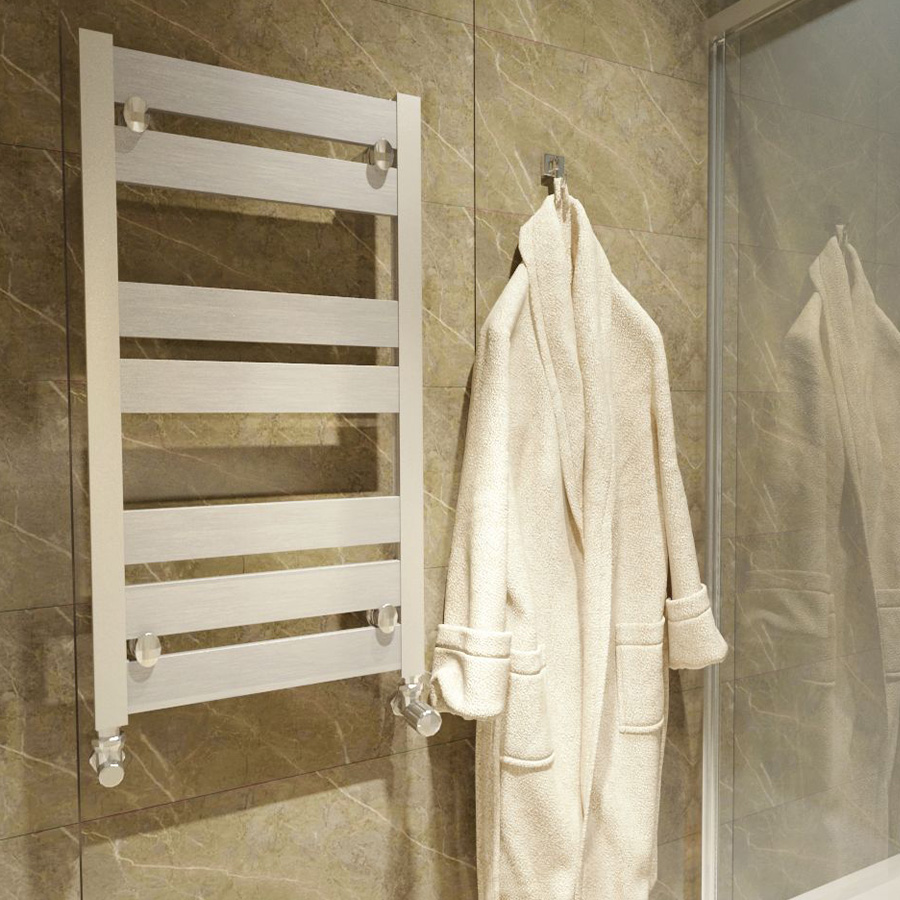

MODEL SHOWN: DN075-MA (Matt Anodised)Diana
The Diana towel rail compliments any modern interior, it features sleek flat bars in a regiment ladder design. You can choose your own RAL colour or textured finish to make a stunning interior statement.
The details:
• 10-Year Warranty
• Available in 6 size options
• Available in White RAL 9010, any RAL colour, Wood Effect, Crocodile Texture & Anodised finishes
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery
The Range
MAX WORKING PRESSURE (BAR)
95 DEGREES MAX WORKING TEMP.
Closed System
ALUMINIUM
VERTICAL MOUNTING
10 YEARS WARRANTY
| SAP CODE | PRODUCT NAME | HEIGHT (mm) | LENGTH (mm) | DEPTH(mm) | FUEL OPTIONS | TOWEL GAPS | PIPES/SECTIONS | HEAT OUTPUT (BTU) | HEAT OUTPUT (WATTS) | WATER CONTENT (L) | GROSS WEIGHT (KG) | FINISH | RRP | TECHNICAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN075AO | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Other Anodised | £163.52 | |||
| DN075CR | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Crocodile Texture | £169.58 | |||
| DN075DX | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Dupont Micrograin | £138.09 | |||
| DN075GA | DN075GA | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Gloss Anodised | £139.30 | ||
| DN075MA | DN075MA | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Matt Anodised | £127.18 | ||
| DN075OW | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | White RAL 9016/9001/1013 | £127.18 | |||
| DN075RAL | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Any RAL Colour | £151.41 | |||
| DN075-W | DN075W | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | White RAL 9010 | £121.13 | ||
| DN075WE | DN075WE | 690 | 525 | 25 | H | 7 | 1076 | 315 | 0.8 | 4 | Wood Effect | £163.52 | ||
| DN076AO | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Other Anodised | £176.55 | |||
| DN076CR | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Crocodile Texture | £183.09 | |||
| DN076DX | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Dupont Micrograin | £149.08 | |||
| DN076GA | DN076GA | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Gloss Anodised | £150.39 | ||
| DN076MA | DN076MA | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Matt Anodised | £137.31 | ||
| DN076OW | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | White RAL 9016/9001/1013 | £137.31 | |||
| DN076RAL | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Any RAL Colour | £163.47 | |||
| DN076-W | DN076W | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | White RAL 9010 | £130.78 | ||
| DN076WE | DN076WE | 690 | 625 | 25 | H | 7 | 1291 | 378 | 0.8 | 4.3 | Wood Effect | £176.55 | ||
| DN105AO | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Other Anodised | £205.48 | |||
| DN105CR | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Crocodile Texture | £213.09 | |||
| DN105DX | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Dupont Micrograin | £173.52 | |||
| DN105GA | DN105GA | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Gloss Anodised | £175.04 | ||
| DN105MA | DN105MA | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Matt Anodised | £159.82 | ||
| DN105OW | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | White RAL 9016/9001/1013 | £159.82 | |||
| DN105RAL | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Any RAL Colour | £190.26 | |||
| DN105-W | DN105W | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | White RAL 9010 | £152.21 | ||
| DN105WE | DN105WE | 920 | 525 | 25 | H | 9 | 1383 | 405 | 1 | 4.7 | Wood Effect | £205.48 | ||
| DN106AO | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Other Anodised | £218.50 | |||
| DN106CR | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Crocodile Texture | £226.60 | |||
| DN106DX | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Dupont Micrograin | £184.51 | |||
| DN106GA | DN106GA | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Gloss Anodised | £186.13 | ||
| DN106MA | DN106MA | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Matt Anodised | £169.95 | ||
| DN106OW | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | White RAL 9016/9001/1013 | £169.95 | |||
| DN106RAL | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Any RAL Colour | £202.32 | |||
| DN106-W | DN106W | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | White RAL 9010 | £161.86 | ||
| DN106WE | DN106WE | 920 | 625 | 25 | H | 9 | 1660 | 486 | 1.1 | 5 | Wood Effect | £218.50 | ||
| DN125AO | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Other Anodised | £246.00 | |||
| DN125CR | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Crocodile Texture | £255.11 | |||
| DN125DX | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Dupont Micrograin | £207.73 | |||
| DN125GA | DN125GA | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Gloss Anodised | £209.56 | ||
| DN125MA | DN125MA | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Matt Anodised | £191.33 | ||
| DN125OW | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | White RAL 9016/9001/1013 | £191.33 | |||
| DN125RAL | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Any RAL Colour | £227.78 | |||
| DN125-W | DN125W | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | White RAL 9010 | £182.22 | ||
| DN125WE | DN125WE | 1150 | 525 | 25 | H | 11 | 1691 | 495 | 1.2 | 5.5 | Wood Effect | £246.00 | ||
| DN126AO | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Other Anodised | £270.60 | |||
| DN126CR | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Crocodile Texture | £280.62 | |||
| DN126DX | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Dupont Micrograin | £228.51 | |||
| DN126GA | DN126GA | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Gloss Anodised | £230.51 | ||
| DN126MA | DN126MA | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Matt Anodised | £210.47 | ||
| DN126OW | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | White RAL 9016/9001/1013 | £210.47 | |||
| DN126RAL | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Any RAL Colour | £250.56 | |||
| DN126-W | DN126W | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | White RAL 9010 | £200.45 | ||
| DN126WE | DN126WE | 1150 | 625 | 25 | H | 11 | 2029 | 594 | 1.4 | 5.8 | Wood Effect | £270.60 |
When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
