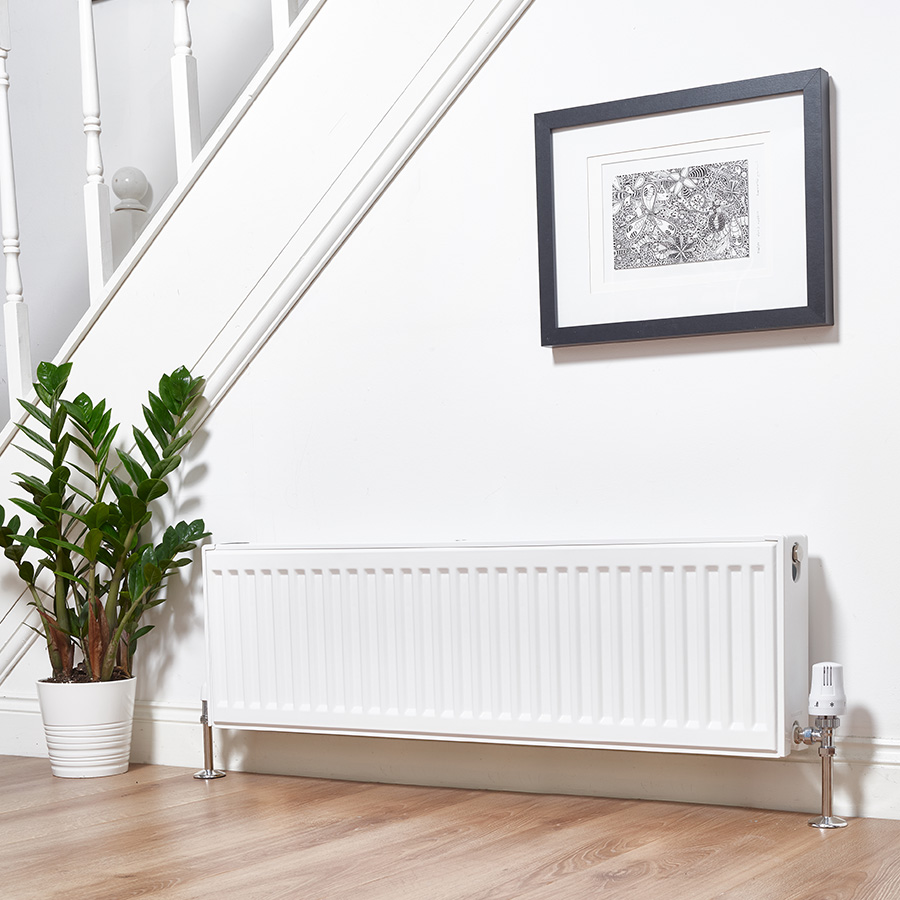

MODEL SHOWN: 3DF1000 (White RAL 9016)

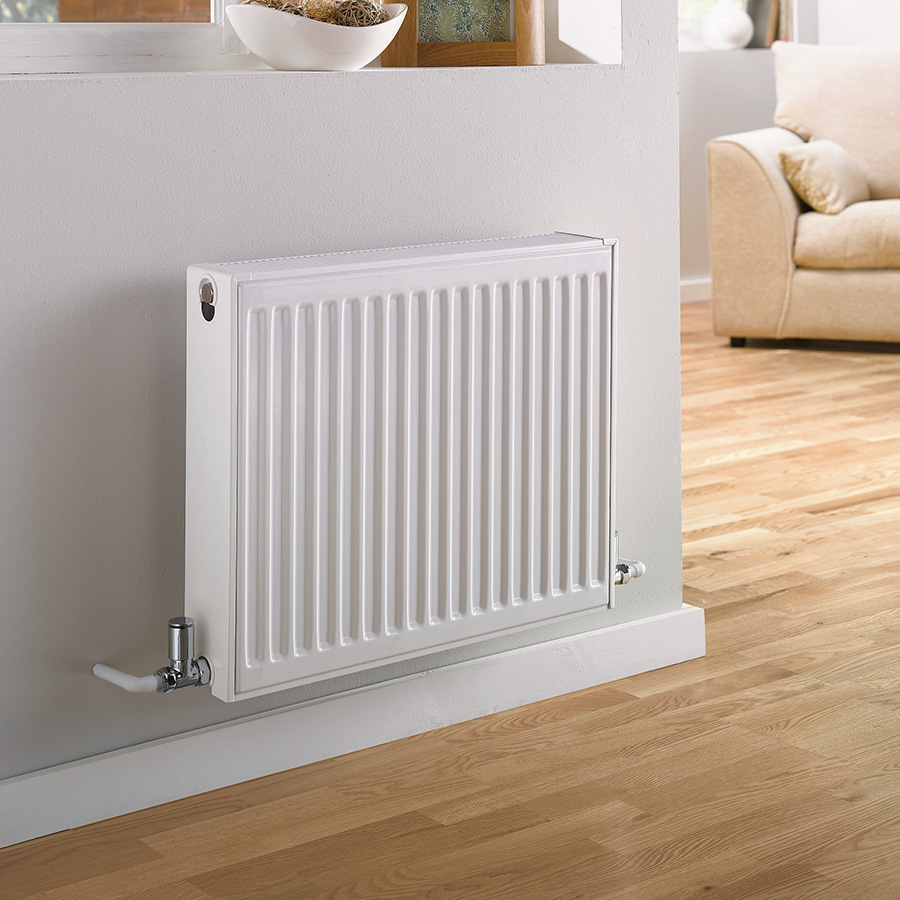

MODEL SHOWN: 4DF500 (White RAL 9016)

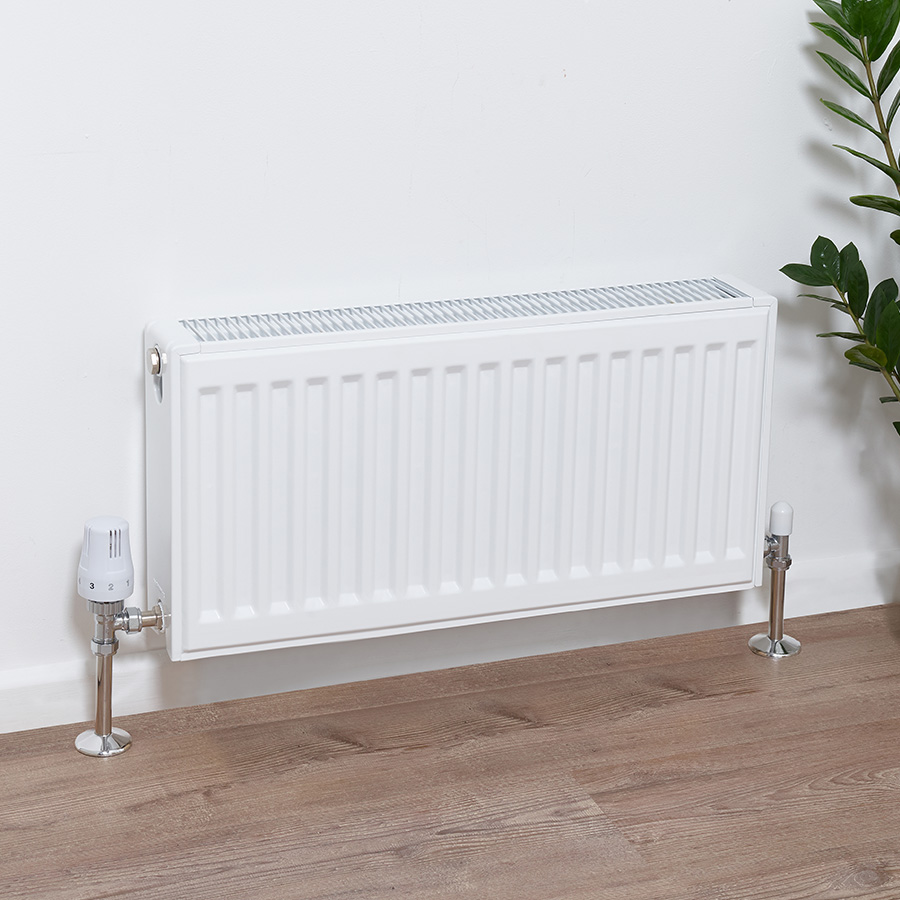

MODEL SHOWN: 3DF600 (White RAL 9016)

Compact 4 Radiators (White RAL 9016)

Compact 4 DF

Durable and versatile, the Compact 4 radiators offer a range of cost-effective, rapid heating solutions for both the home and working environments.

The details:
• 10-Year Warranty
• Available in 118 size options
• High-quality white powder coat finish (White RAL 9016)
• We recommend pipework is not installed until receipt of radiator
• Please allow up to 10 weeks for delivery for made to order models
• All prices are exclusive of VAT and delivery

SKU: Compact 4 DF Categories: Compact 4 DF, Panel, Range Where to buy

The Range

MAX WORKING PRESSURE (BAR)

MILD STEEL

VERTICAL MOUNTING

10 YEARS WARRANTY

SAP CODE	PRODUCT NAME	HEIGHT (mm)	LENGTH (mm)	DEPTH(mm)	FUEL OPTIONS	TOWEL GAPS	PIPES/SECTIONS	HEAT OUTPUT (BTU)	HEAT OUTPUT (WATTS)	WATER CONTENT (L)	GROSS WEIGHT (KG)	FINISH	RRP
3DF1000	3DF1000	300	1000	100	H	N/A	30	3594	1052	3.5	16.05	White RAL 9016	£402.72
3DF1100	3DF1100	300	1100	100	H	N/A	33	3953	1157	3.85	17.49	White RAL 9016	£443.60
3DF1200	3DF1200	300	1200	100	H	N/A	36	4312	1262	4.2	18.93	White RAL 9016	£489.08
3DF1400	3DF1400	300	1400	100	H	N/A	42	5031	1473	4.9	21.8	White RAL 9016	£576.68
3DF1600	3DF1600	300	1600	100	H	N/A	48	5750	1683	5.6	24.75	White RAL 9016	£663.35
3DF1800	3DF1800	300	1800	100	H	N/A	54	6469	1894	6.3	27.78	White RAL 9016	£754.02
3DF2000	3DF2000	300	2000	100	H	N/A	60	7187	2104	7	30.65	White RAL 9016	£882.53
3DF2200	3DF2200	300	2200	100	H	N/A	66	7906	2314	7.7	33.59	White RAL 9016	£997.20
3DF2400	3DF2400	300	2400	100	H	N/A	72	8625	2525	8.4	36.46	White RAL 9016	£1,123.23
3DF2700	3DF2700	300	2700	100	H	N/A	81	9703	2840	9.45	40.86	White RAL 9016	£1,314.88
3DF3000	3DF3000	300	3000	100	H	N/A	90	10781	3156	10.5	45.24	White RAL 9016	£1,461.07
3DF400	3DF400	300	400	100	H	N/A	12	1437	421	1.4	7.36	White RAL 9016	£200.26
3DF500	3DF500	300	500	100	H	N/A	15	1797	526	1.75	8.8	White RAL 9016	£209.61
3DF600	3DF600	300	600	100	H	N/A	18	2156	631	2.1	10.23	White RAL 9016	£239.84
3DF700	3DF700	300	700	100	H	N/A	21	2516	736	2.45	11.67	White RAL 9016	£280.31
3DF800	3DF800	300	800	100	H	N/A	24	2875	842	2.8	13.1	White RAL 9016	£320.58
3DF900	3DF900	300	900	100	H	N/A	27	3234	947	3.15	14.54	White RAL 9016	£358.61
4DF1000	4DF1000	400	1000	100	H	N/A	30	4601	1347	4.27	21.16	White RAL 9016	£463.01
4DF1100	4DF1100	400	1100	100	H	N/A	33	5061	1482	4.7	23.1	White RAL 9016	£507.77
4DF1200	4DF1200	400	1200	100	H	N/A	36	5522	1616	5.12	25.02	White RAL 9016	£552.66
4DF1300	4DF1300	400	1300	100	H	N/A	39	5982	1751	5.55	26.96	White RAL 9016	£599.94
4DF1400	4DF1400	400	1400	100	H	N/A	42	6442	1886	5.98	28.89	White RAL 9016	£647.13
4DF1500	4DF1500	400	1500	100	H	N/A	45	6902	2021	6.41	30.9	White RAL 9016	£699.66
4DF1600	4DF1600	400	1600	100	H	N/A	48	7362	2155	6.83	32.84	White RAL 9016	£731.82
4DF1800	4DF1800	400	1800	100	H	N/A	54	8282	2425	7.69	36.9	White RAL 9016	£826.36
4DF2000	4DF2000	400	2000	100	H	N/A	60	9203	2694	8.54	40.76	White RAL 9016	£920.02
4DF2200	4DF2200	400	2200	100	H	N/A	66	10123	2963	9.39	44.71	White RAL 9016	£1,047.76
4DF2400	4DF2400	400	2400	100	H	N/A	72	11043	3233	10.25	48.57	White RAL 9016	£1,186.72
4DF2700	4DF2700	400	2700	100	H	N/A	81	12424	3637	11.53	54.45	White RAL 9016	£1,381.56
4DF3000	4DF3000	400	3000	100	H	N/A	90	13804	4041	12.81	60.32	White RAL 9016	£1,565.98
4DF400	4DF400	400	400	100	H	N/A	12	1841	539	1.71	9.49	White RAL 9016	£221.45
4DF500	4DF500	400	500	100	H	N/A	15	2301	674	2.14	11.42	White RAL 9016	£239.01
4DF600	4DF600	400	600	100	H	N/A	18	2761	808	2.56	13.35	White RAL 9016	£283.77
4DF700	4DF700	400	700	100	H	N/A	21	3221	943	2.99	15.28	White RAL 9016	£328.54
4DF800	4DF800	400	800	100	H	N/A	24	3681	1078	3.42	17.22	White RAL 9016	£373.49
4DF900	4DF900	400	900	100	H	N/A	27	4141	1212	3.84	19.15	White RAL 9016	£418.17
5DF1000	5DF1000	500	1000	100	H	N/A	30	5531	1619	5.03	26.31	White RAL 9016	£545.19
5DF1100	5DF1100	500	1100	100	H	N/A	33	6084	1781	5.53	28.74	White RAL 9016	£598.76
5DF1200	5DF1200	500	1200	100	H	N/A	36	6637	1943	6.04	31.17	White RAL 9016	£652.22
5DF1300	5DF1300	500	1300	100	H	N/A	39	7190	2105	6.54	33.6	White RAL 9016	£706.95
5DF1400	5DF1400	500	1400	100	H	N/A	42	7743	2267	7.04	36.03	White RAL 9016	£761.62
5DF1500	5DF1500	500	1500	100	H	N/A	45	8296	2429	7.55	38.54	White RAL 9016	£826.57
5DF1600	5DF1600	500	1600	100	H	N/A	48	8849	2590	8.05	40.97	White RAL 9016	£871.29
5DF1800	5DF1800	500	1800	100	H	N/A	54	9955	2914	9.05	46.06	White RAL 9016	£980.70
5DF2000	5DF2000	500	2000	100	H	N/A	60	11061	3238	10.06	50.93	White RAL 9016	£1,100.74
5DF2200	5DF2200	500	2200	100	H	N/A	66	12167	3562	11.07	55.86	White RAL 9016	£1,258.82
5DF2400	5DF2400	500	2400	100	H	N/A	72	13273	3886	12.07	60.72	White RAL 9016	£1,419.69
5DF2700	5DF2700	500	2700	100	H	N/A	81	14932	4371	13.58	68.09	White RAL 9016	£1,729.15
5DF3000	5DF3000	500	3000	100	H	N/A	90	16592	4857	15.09	75.46	White RAL 9016	£1,867.76
5DF400	5DF400	500	400	100	H	N/A	12	2212	648	2.01	11.65	White RAL 9016	£239.32
5DF500	5DF500	500	500	100	H	N/A	15	2765	810	2.52	14.08	White RAL 9016	£273.94
5DF600	5DF600	500	600	100	H	N/A	18	3318	971	3.02	16.51	White RAL 9016	£328.52
5DF700	5DF700	500	700	100	H	N/A	21	3871	1133	3.52	18.94	White RAL 9016	£383.32
5DF800	5DF800	500	800	100	H	N/A	24	4424	1295	4.02	21.37	White RAL 9016	£435.52
5DF900	5DF900	500	900	100	H	N/A	27	4977	1457	4.53	23.8	White RAL 9016	£490.38
5vDF200	5vDF200	500	200	100	H	N/A	6	995	291	1.01	6.45	White RAL 9016	£275.57
5vDF300	5vDF300	500	300	100	H	N/A	9	1493	437	1.51	9.2	White RAL 9016	£278.09
6DF1000	6DF1000	600	1000	100	H	N/A	30	6385	1869	5.8	31.43	White RAL 9016	£590.63
6DF1000A	6DF1000A	600	1000	100	H	N/A	30	6385	1869	5.80	31.43	Anthracite RAL 7016	£750.09
6DF1100	6DF1100	600	1100	100	H	N/A	33	7023	2056	6.38	34.36	White RAL 9016	£649.07
6DF1200	6DF1200	600	1200	100	H	N/A	36	7661	2243	6.96	37.29	White RAL 9016	£707.42
6DF1200A	6DF1200A	600	1200	100	H	N/A	36	7661	2243	6.96	37.29	Anthracite RAL 7016	£891.34
6DF1300	6DF1300	600	1300	100	H	N/A	39	8300	2430	7.54	40.22	White RAL 9016	£825.90
6DF1400	6DF1400	600	1400	100	H	N/A	42	8938	2617	8.12	43.14	White RAL 9016	£851.99
6DF1400A	6DF1400A	600	1400	100	H	N/A	42	8938	2617	8.12	43.14	Anthracite RAL 7016	£1,064.98
6DF1500	6DF1500	600	1500	100	H	N/A	45	9577	2804	8.7	46.15	White RAL 9016	£971.25
6DF1600	6DF1600	600	1600	100	H	N/A	48	10215	2990	9.28	49.08	White RAL 9016	£1,046.29
6DF1600A	6DF1600A	600	1600	100	H	N/A	48	10215	2990	9.28	49.08	Anthracite RAL 7016	£1,297.40
6DF1800	6DF1800	600	1800	100	H	N/A	54	11492	3364	10.44	55.2	White RAL 9016	£1,178.30
6DF2000	6DF2000	600	2000	100	H	N/A	60	12769	3738	11.6	61.06	White RAL 9016	£1,284.65
6DF2200	6DF2200	600	2200	100	H	N/A	66	14046	4112	12.76	66.99	White RAL 9016	£1,480.87
6DF2400	6DF2400	600	2400	100	H	N/A	72	15323	4486	13.92	72.85	White RAL 9016	£1,690.98
6DF2700	6DF2700	600	2700	100	H	N/A	81	17238	5046	15.66	81.71	White RAL 9016	£2,029.86
6DF300	6DF300	600	300	100	H	N/A	9	1915	561	1.74	10.86	White RAL 9016	£346.45
6DF3000	6DF3000	600	3000	100	H	N/A	90	19154	5607	17.4	90.57	White RAL 9016	£2,284.41
6DF400	6DF400	600	400	100	H	N/A	12	2554	748	2.32	13.79	White RAL 9016	£277.81
6DF500	6DF500	600	500	100	H	N/A	15	3192	935	2.9	16.71	White RAL 9016	£318.08
6DF600	6DF600	600	600	100	H	N/A	18	3831	1121	3.48	19.64	White RAL 9016	£353.27
6DF600A	6DF600A	600	600	100	H	N/A	18	3831	1121	3.48	19.64	Anthracite RAL 7016	£459.25
6DF700	6DF700	600	700	100	H	N/A	21	4469	1308	4.06	22.57	White RAL 9016	£412.04
6DF800	6DF800	600	800	100	H	N/A	24	5108	1495	4.64	25.5	White RAL 9016	£471.60
6DF800A	6DF800A	600	800	100	H	N/A	24	5108	1495	4.64	25.50	Anthracite RAL 7016	£608.36
6DF900	6DF900	600	900	100	H	N/A	27	5746	1682	5.22	28.43	White RAL 9016	£528.92
6vDF200	6vDF200	600	200	100	H	N/A	6	Missing Attachment	336	1.16	7.53	White RAL 9016	£323.47
6vDF300	6vDF300	600	300	100	H	N/A	9	1724	505	1.74	10.75	White RAL 9016	£325.97
7DF1000	7DF1000	700	1000	100	H	N/A	30	7174	2100	6.43	35.98	White RAL 9016	£780.18
7DF1100	7DF1100	700	1100	100	H	N/A	33	7891	2310	7.07	39.34	White RAL 9016	£858.39
7DF1200	7DF1200	700	1200	100	H	N/A	36	8608	2520	7.72	42.71	White RAL 9016	£936.57
7DF1300	7DF1300	700	1300	100	H	N/A	39	9326	2730	8.36	46.07	White RAL 9016	£1,014.39
7DF1400	7DF1400	700	1400	100	H	N/A	42	10043	2940	9	49.44	White RAL 9016	£1,092.18
7DF1500	7DF1500	700	1500	100	H	N/A	45	10760	3150	9.65	52.88	White RAL 9016	£1,171.08
7DF1600	7DF1600	700	1600	100	H	N/A	48	11478	3360	10.29	56.25	White RAL 9016	£1,249.98
7DF1800	7DF1800	700	1800	100	H	N/A	54	12912	3780	11.57	63.29	White RAL 9016	£1,404.24
7DF2000	7DF2000	700	2000	100	H	N/A	60	14347	4200	12.86	70.02	White RAL 9016	£1,575.52
7DF2200	7DF2200	700	2200	100	H	N/A	66	15782	4620	14.15	76.83	White RAL 9016	£1,784.35
7DF2400	7DF2400	700	2400	100	H	N/A	72	17217	5040	15.43	83.56	White RAL 9016	£2,111.49
7DF400	7DF400	700	400	100	H	N/A	12	2869	840	2.57	15.71	White RAL 9016	£335.99
7DF500	7DF500	700	500	100	H	N/A	15	3587	1050	3.22	19.07	White RAL 9016	£397.58
7DF600	7DF600	700	600	100	H	N/A	18	4304	1260	3.86	22.44	White RAL 9016	£476.68
7DF700	7DF700	700	700	100	H	N/A	21	5022	1470	4.5	25.81	White RAL 9016	£556.02
7DF800	7DF800	700	800	100	H	N/A	24	5739	1680	5.14	29.17	White RAL 9016	£635.40
7DF900	7DF900	700	900	100	H	N/A	27	6456	1890	5.79	32.54	White RAL 9016	£715.22
7vDF200	7vDF200	700	200	100	H	N/A	6	1291	378	1.29	8.52	White RAL 9016	£386.70
9DF1000	9DF1000	900	1000	100	H	N/A	30	8564	2507	7.7	46.85	White RAL 9016	£1,069.62
9DF1200	9DF1200	900	1200	100	H	N/A	36	10277	3008	9.24	55.71	White RAL 9016	£1,318.78
9DF1400	9DF1400	900	1400	100	H	N/A	42	11989	3510	10.78	64.54	White RAL 9016	£1,501.85
9DF400	9DF400	900	400	100	H	N/A	12	3426	1003	3.08	20.26	White RAL 9016	£469.35
9DF500	9DF500	900	500	100	H	N/A	15	4282	1254	3.85	24.68	White RAL 9016	£537.26
9DF600	9DF600	900	600	100	H	N/A	18	5138	1504	4.62	29.09	White RAL 9016	£644.70
9DF700	9DF700	900	700	100	H	N/A	21	5995	1755	5.39	33.52	White RAL 9016	£752.23
9DF800	9DF800	900	800	100	H	N/A	24	6851	2006	6.16	37.94	White RAL 9016	£857.23
9DF900	9DF900	900	900	100	H	N/A	27	7708	2256	6.93	42.36	White RAL 9016	£967.24
9vDF200	9vDF200	900	200	100	H	N/A	6	1542	451	1.54	10.99	White RAL 9016	£518.48

When ordering suffix the product code with "C" for chrome finish and "w" for with finish etc. Fuel options: E: Electric only H: Hot Water only D: Dual Fuel which is both electric in summer and central heating hot water in winter Prices include delivery. However a delivery charge may be applicable to Scottish Highlands and overseas postcodes.
Prices above are recommended retail prices and are exclusive of any customer duty, levy or value added tax. Pipe centre measurements are incorporating pair of valve distance of 45mm each where applicable. Outputs published are to EN442 at ΔT50. Multiply by 1.268 to convert the outputs to ΔT60.
Prices quoted are guided prices and are subject to change. Product specification is subject to change without prior notification.
E/H/D: The price quoted refers to a product suitable for Hot Water. Electric and Dual Fuel options require additional elements; please contact Ultraheat for a quote.
